2-120

Configuring the ProCurve Wireless Edge Services xl Module

SNMP Traps and Error Reporting

2. Select the snmptrap user and click the Edit button.

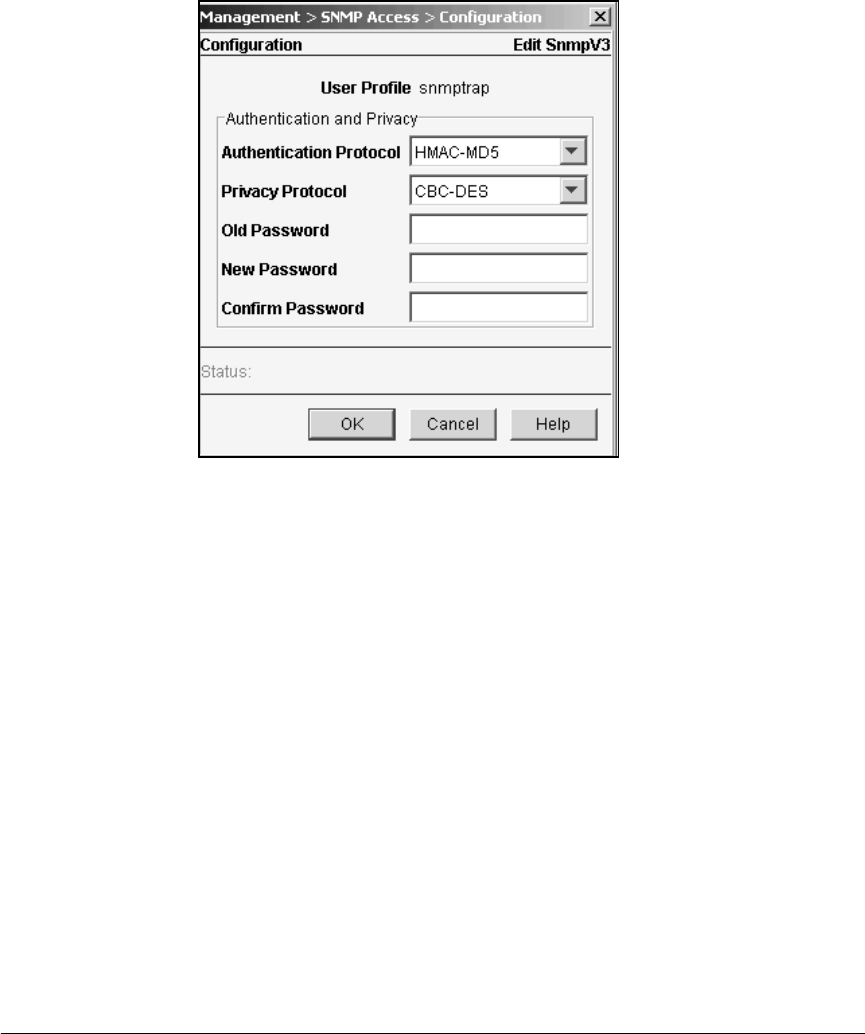

Figure 2-76. Changing the Password for SNMP v3 Traps

3. In the Old Password field, enter the current password—by default,

procurve.

4. In the New Password and Confirm Password fields, enter the new password.

5. Click the OK button.
