2-121

Configuring the ProCurve Wireless Edge Services xl Module

SNMP Traps and Error Reporting

View Information About SNMP Receivers. After you define an SNMP

server, the server is displayed in the Management > SNMP Trap Receivers

screen.

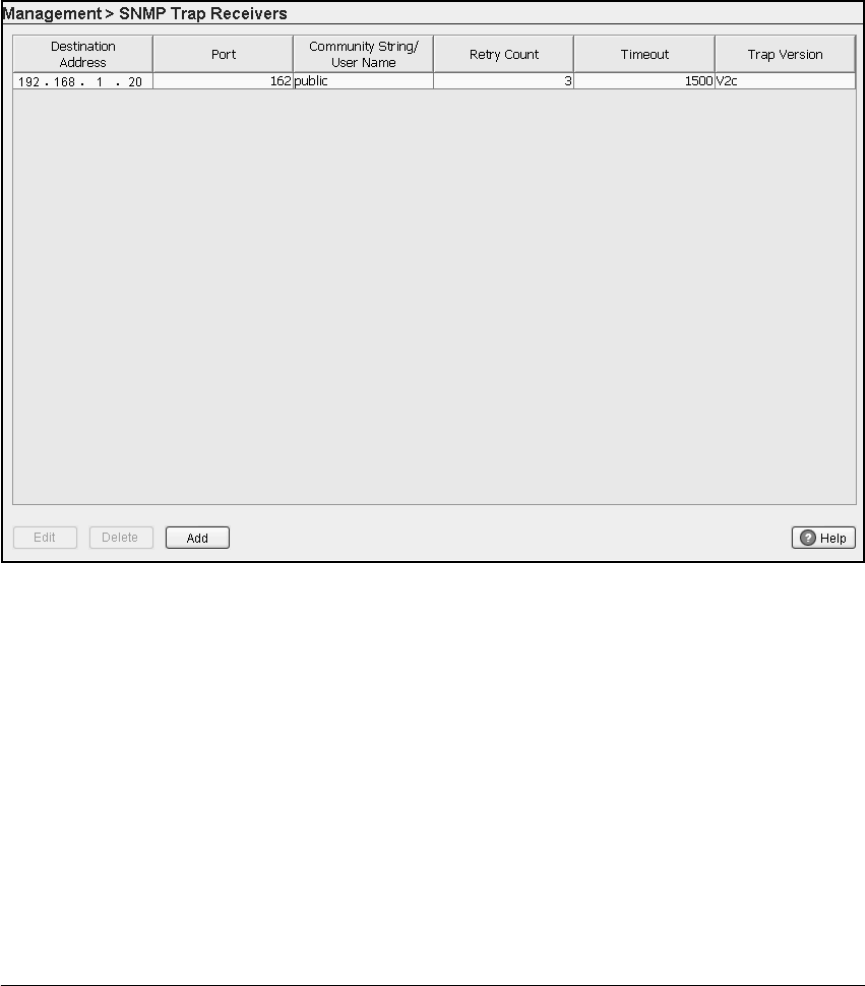

Figure 2-77. Management > SNMP Trap Receivers Screen

You can view the following information about that server:

■ Destination Address—the IP address of the SNMP server

■ Port—the port number that the module uses to communicate with the

SNMP server. By default, the module uses port 162.

■ Community String/User Name—the community string for the trap. Receivers

are automatically assigned to the public community.

■ Retry Count—the number of times that the Wireless Edge Services xl

Module will try to contact the SNMP server

■ Timeout—the number of seconds that the Wireless Edge Services xl Mod-

ule waits for a response from the SNMP server before ending the session

■ Trap Version—the version of the SNMP trap sent to the SNMP server
