2-125

Configuring the ProCurve Wireless Edge Services xl Module

Radio Port Licenses

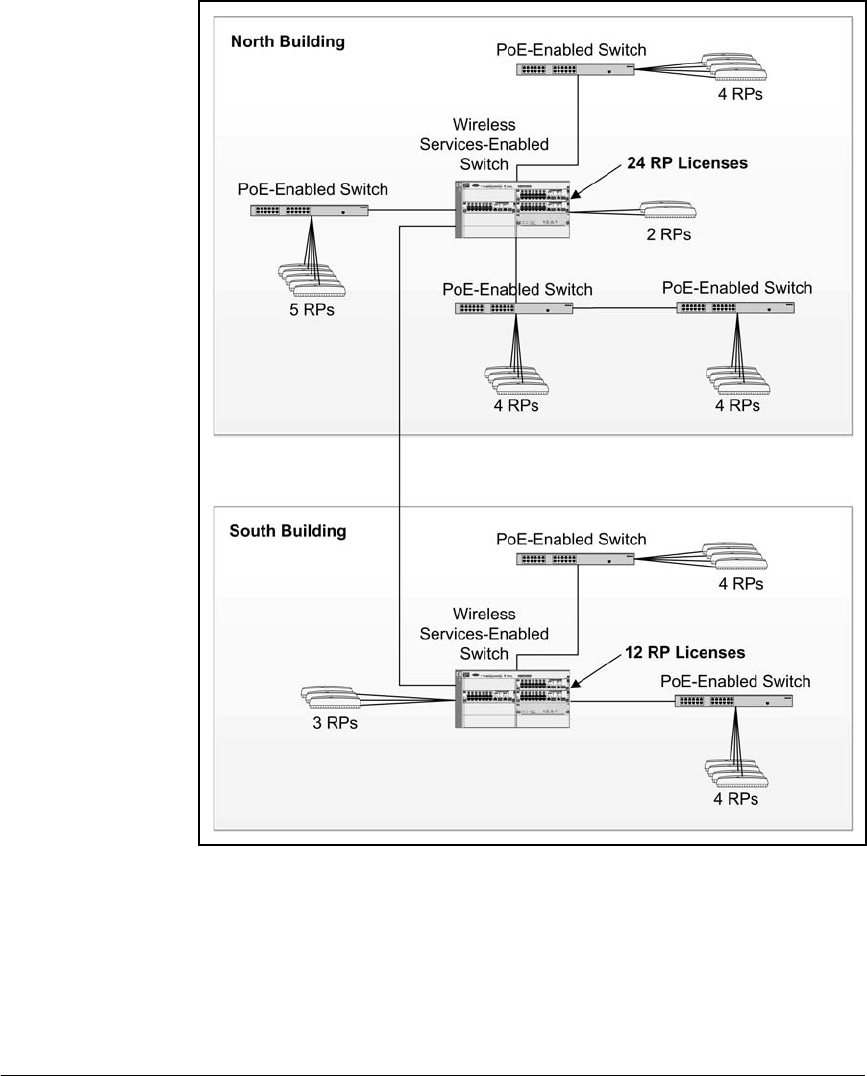

Figure 2-78. Sample Network with Additive Licenses Installed on the Wireless

Services-Enabled Switch in the North Building

In situations such as this one, you can uninstall the Wireless Services Module

12 RP License from the Wireless Edge Services xl Module in the North build-

ing. You can then install the Wireless Services Module 12 RP License on the

Wireless Edge Services xl Module in the South building.
