2-129

Configuring the ProCurve Wireless Edge Services xl Module

Radio Port Licenses

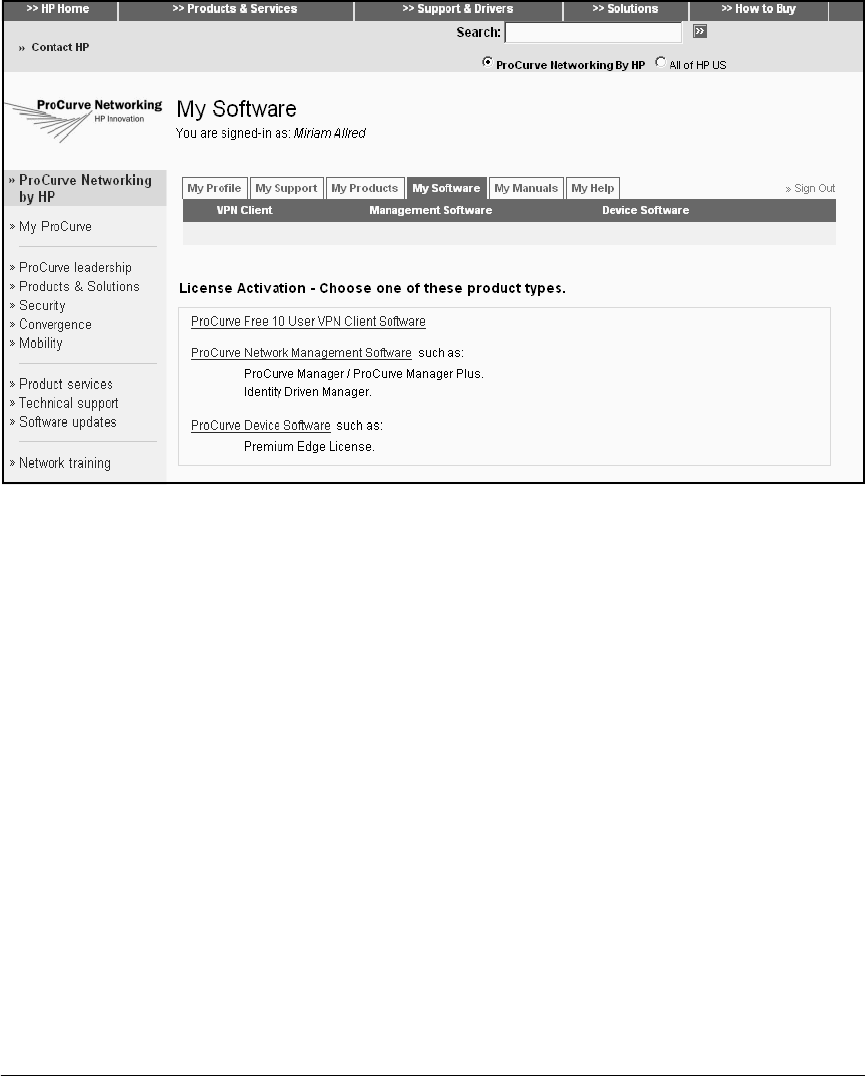

Figure 2-80. My ProCurve Web Portal

4. Click ProCurve Device Software. You can now begin to generate a license

key. (See Figure 2-81.)
