2-130

Configuring the ProCurve Wireless Edge Services xl Module

Radio Port Licenses

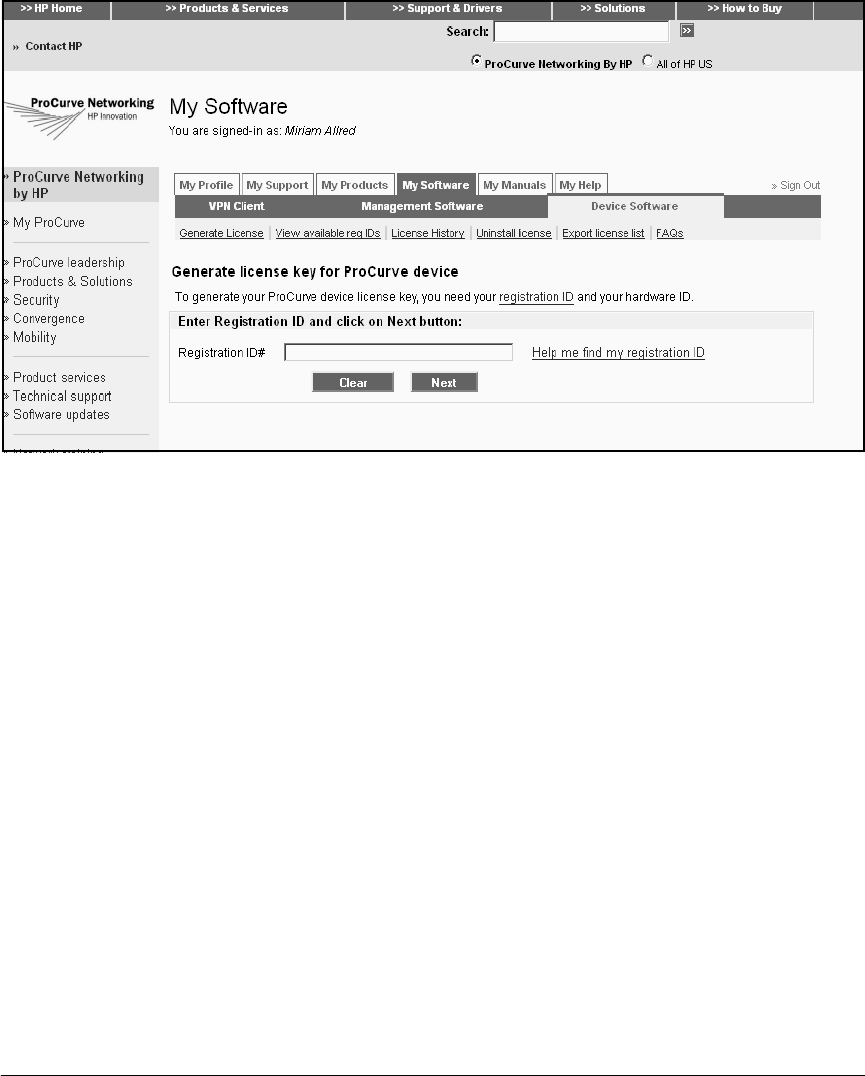

Figure 2-81. Enter the Registration ID

5. Enter the registration ID that you located in step 1 in the Registration ID

field and click Next. The Hardware ID page is displayed.

6. Find out the hardware ID for the Wireless Edge Services xl Module.

a. Open a second browser (if you have not already done so) and access

the Web browser interface for the Wireless Edge Services xl Module.

b. Select Management > Licenses and click the License-Install Summary

tab. (See Figure 2-82.)
