2-131

Configuring the ProCurve Wireless Edge Services xl Module

Radio Port Licenses

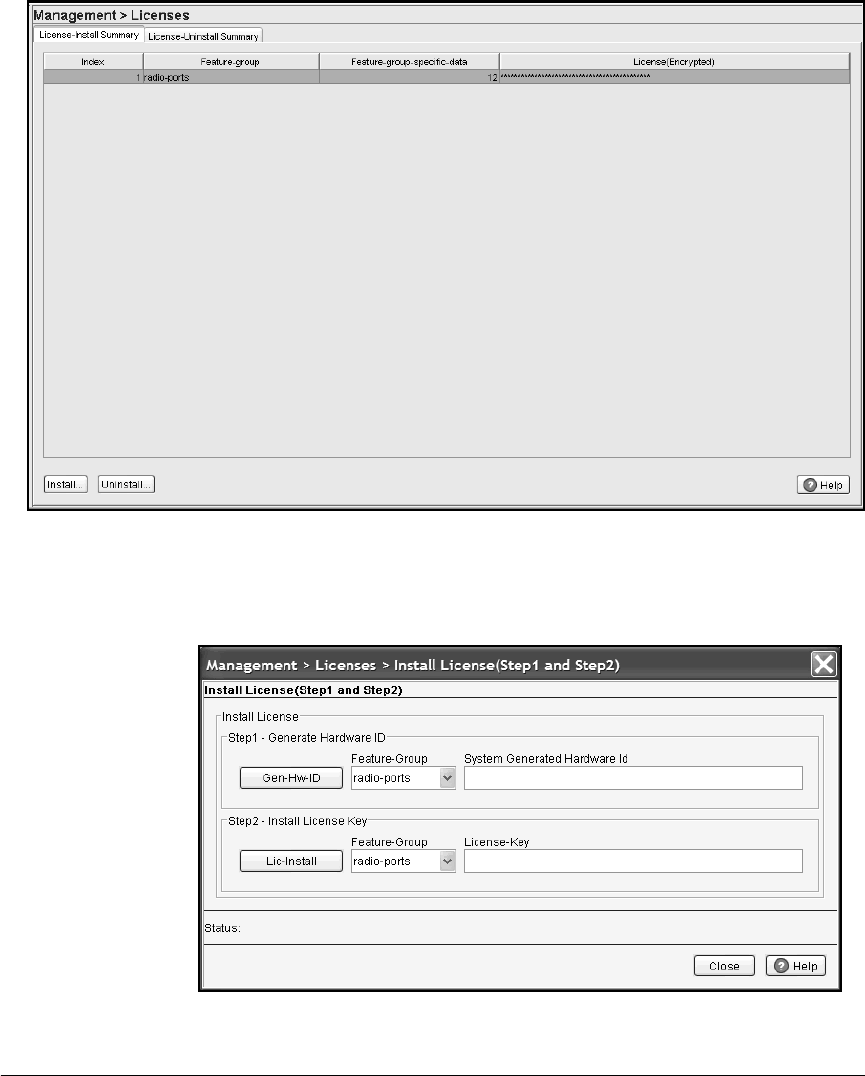

Figure 2-82. The License-Install Summary Screen

c. Click the Install button at the bottom of the screen. The Install License

(Step 1 and Step 2) screen is displayed. (See Figure 2-83.)

Figure 2-83. The Install License (Step 1 and Step 2) Screen
