Configuring the ProCurve Wireless Edge Services xl Module
Radio Port Licenses
To simplify the process of uninstalling a license, you may want to use two Web
browsers as you complete these steps:
1. Access the Web browser interface for the Wireless Edge Services xl
Module.
2. Select Management > Licenses and click the License-Install Summary tab.
3. Highlight the license that you want to uninstall and click the Uninstall
button at the bottom of the screen. The Un-Install License screen is
displayed. (See Figure 2-84.)

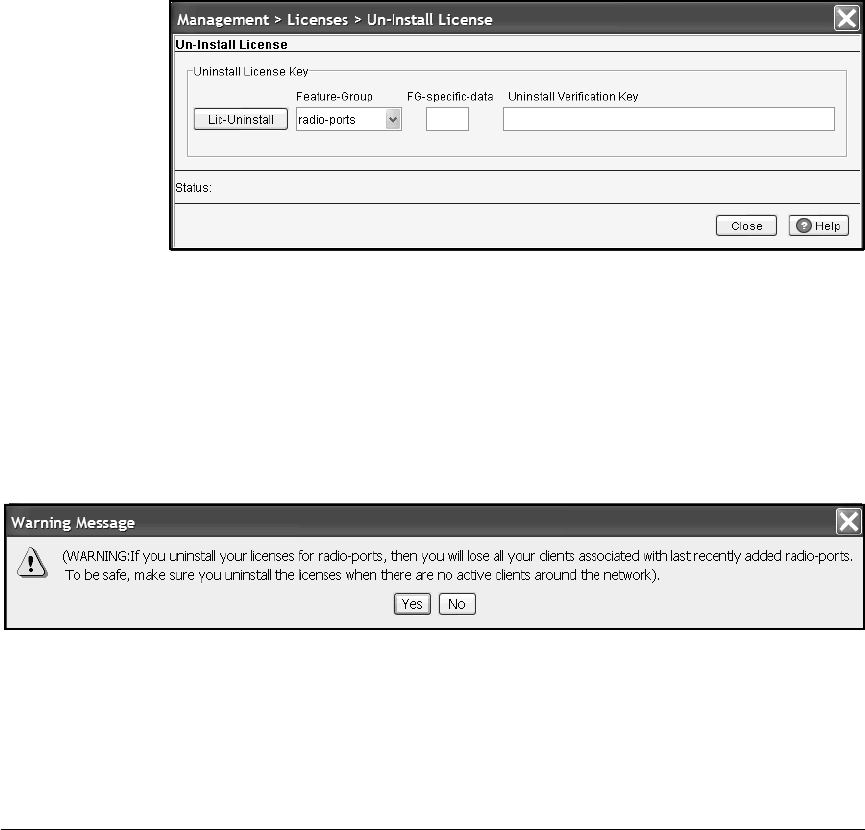

Figure 2-84. Un-Install License Screen
4. For Feature-Group, accept the default setting of radio ports.
5. For FG-specific-data, enter 12. FG is short for Feature-Group, and this field
specifies the number of RP licenses.
6. Click the Lic-Uninstall button. A warning message is displayed, reminding
you that if stations are associated with RPs that use these licenses, the
stations will lose their network connection.
Figure 2-85. Warning Message Displayed When You Attempt to Uninstall Licenses
7. Click the Yes button if you want to continue the process of uninstalling
the licenses.
