2-134

Configuring the ProCurve Wireless Edge Services xl Module

Radio Port Licenses

8. When the uninstall verification key is displayed, copy the key (using

Ctrl-C) or write it down. (Copying the key is easier and more accurate.)

You will enter the key on the My ProCurve Web portal.

Note If you forget or misplace the uninstall verification key, you can view it by

selecting Management > Licenses and clicking the License_Uninstall Summary

tab. Alternately, you can enter the show licenses uninstalled command from

the CLI. This command displays the last uninstall verification key that was

generated by the Wireless Edge Services xl Module.

9. Access the My ProCurve Web portal at http://my.procurve.com and sign in.

10. On the My ProCurve page, click My Software. The License Activation page

is displayed.

11. Click Device Software. The Registration ID page is displayed.

12. Click the Uninstall License tab in the navigation bar. The Uninstall

ProCurve device license page is displayed.

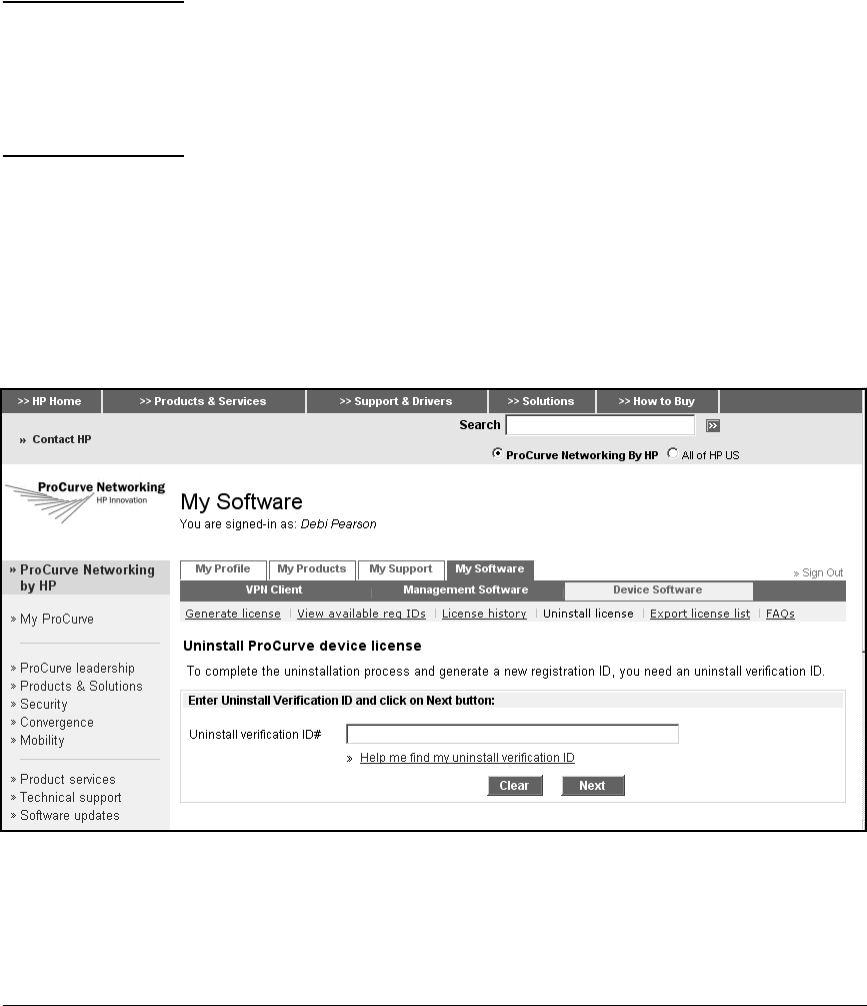

Figure 2-86. Uninstall ProCurve Device License Page
