2-136

Configuring the ProCurve Wireless Edge Services xl Module

Setting System Information—Name, Time, and Country Code

Setting System Information—Name,

Time, and Country Code

Access the Network Setup screen to configure system information:

■ system name and other information that the Wireless Edge Services xl

Module reports to an SNMP server

■ the time and time zone for the internal clock

■ the country code

You can also view information about the wireless services-enabled switch and

reset passwords for the SNMP users (manager and operator).

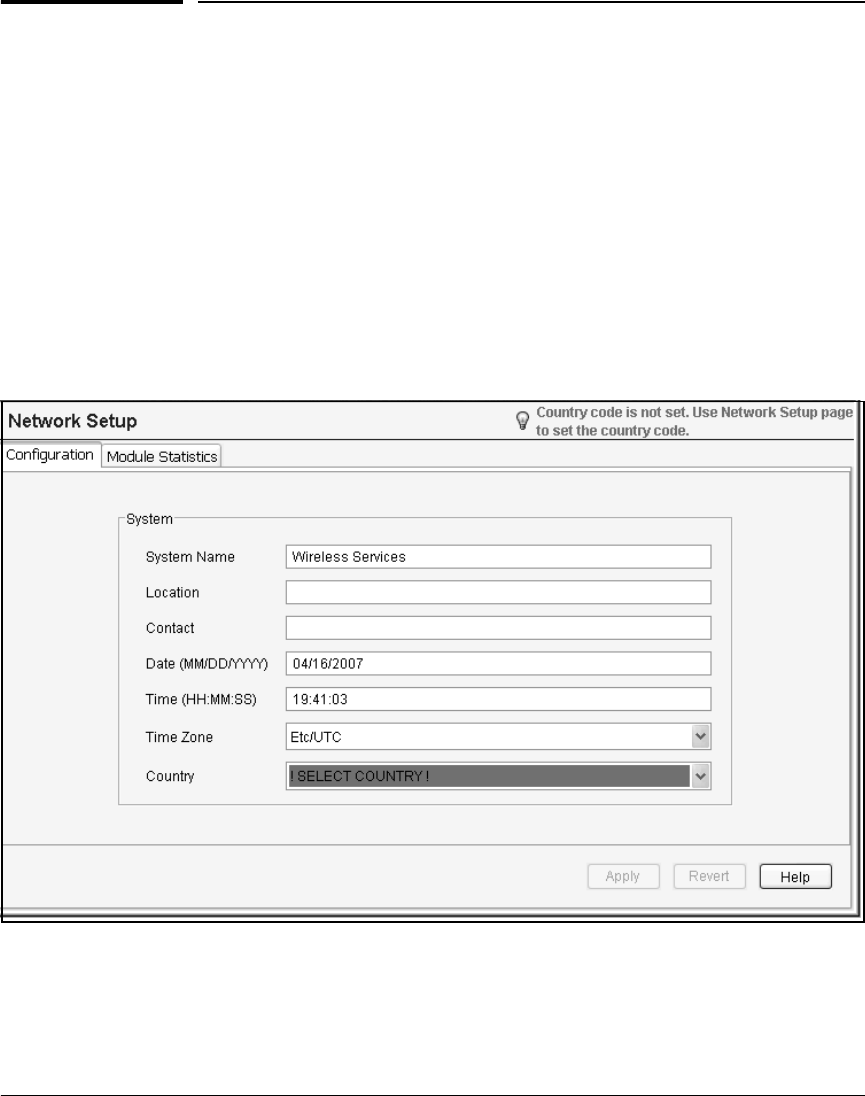

Figure 2-87. Network Setup Screen
