2-144

Configuring the ProCurve Wireless Edge Services xl Module

Enabling Secure Network Time Protocol (NTP)

Configuring Secure NTP Options

To configure a Secure NTP server, complete these steps:

1. Select Special Features > Secure NTP > Configuration.

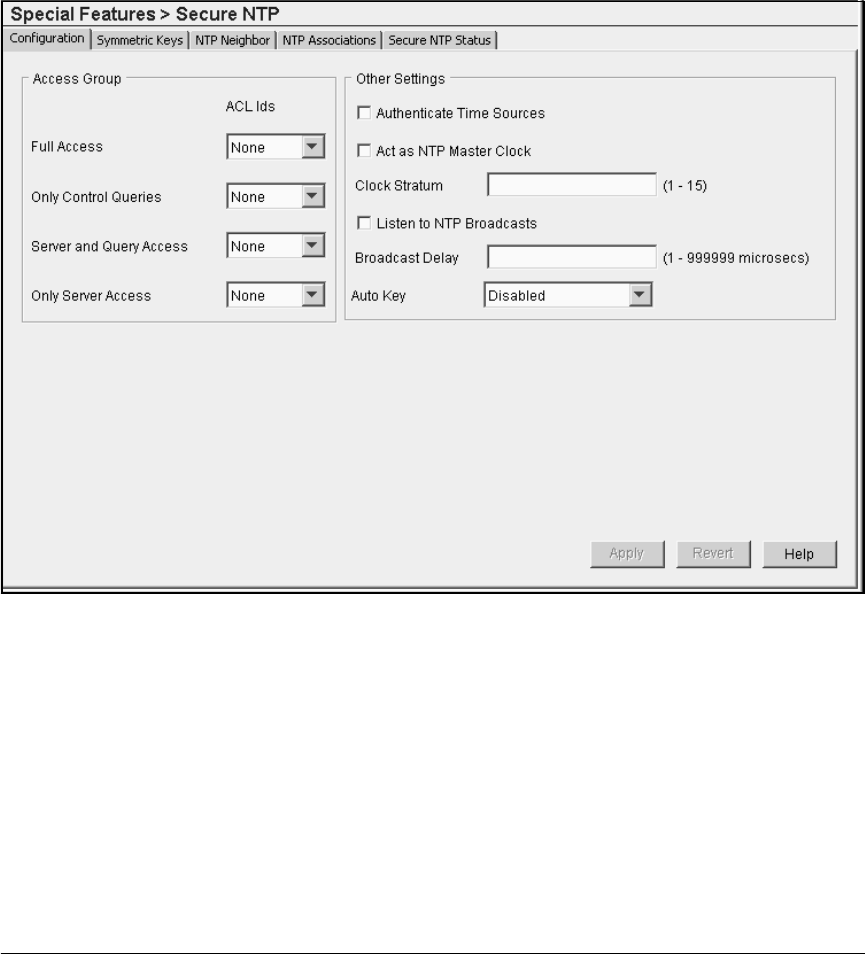

Figure 2-89. Special Features > Secure NTP > Configuration Screen

2. Optionally, in the Other Settings section, check the Authenticate Time

Sources box.

This setting requires the Wireless Edge Services xl Module to include a

credential authentication step when communicating with its neighbors

and clients. See “Configuring Authentication for Secure NTP” on page

2-148.

3. Optionally, check the Act as NTP Master Clock box to specify that the

module use its internal clock to act as the master clock.
