2-151

Configuring the ProCurve Wireless Edge Services xl Module

Enabling Secure Network Time Protocol (NTP)

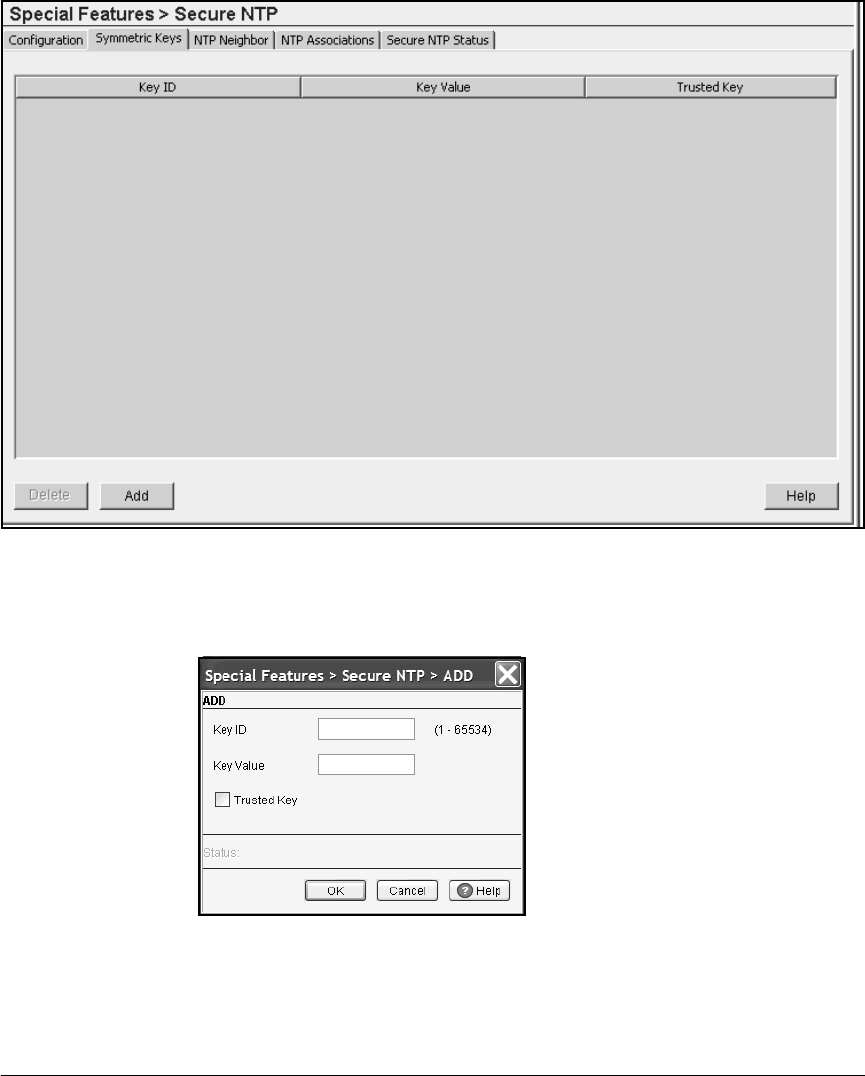

Figure 2-92. Special Features > Secure NTP > Symmetric Keys Screen

3. Click the Add button. The ADD screen is displayed. (See Figure 2-93.)

Figure 2-93. Add Symmetric Key Screen

4. In the Key ID field, enter the key ID, from 1 through 65534.
