2-154
Configuring the ProCurve Wireless Edge Services xl Module
Enabling Secure Network Time Protocol (NTP)

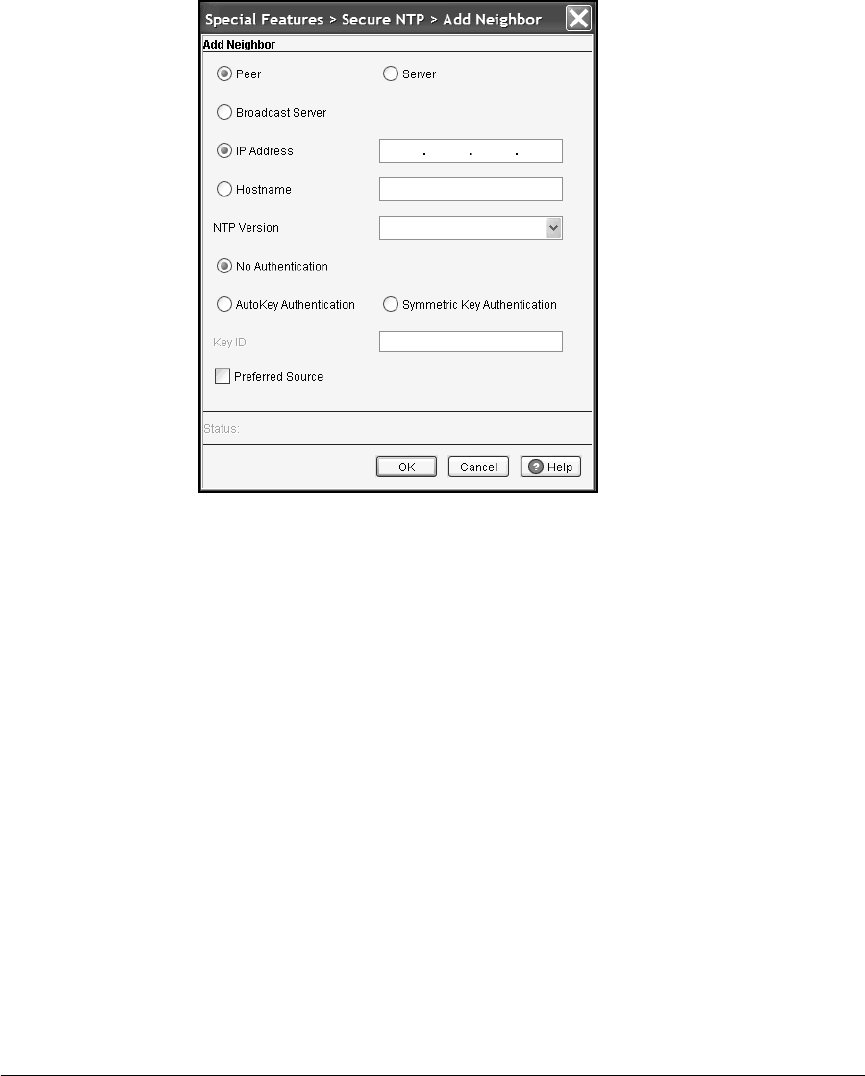

Figure 2-95. Add Neighbor Screen
3. Select the neighbor type:
• Peer—A peer is another NTP server in a close relationship with your
Wireless Edge Services xl Module. The module synchronizes with its
peers, and at any given moment only one peer in the group acts as the
NTP server.
• Server—Select this type if the NTP neighbor is a server to which the
Wireless Edge Services xl Module acts as a client.
• Broadcast Server—Instead of adding a neighbor, selecting this option
actually configures the module itself to act as a broadcast server. See
“Configuring the Wireless Edge Services xl Module as a Broadcast
Server” on page 2-155.
4. To specify the IP address or hostname of the neighbor, do one of the
following:
•Click IP Address and enter the IP address of the peer or server.
•Click Hostname to enter the fully qualified domain name (FQDN) of
the peer or server.
