2-157

Configuring the ProCurve Wireless Edge Services xl Module

Enabling Secure Network Time Protocol (NTP)

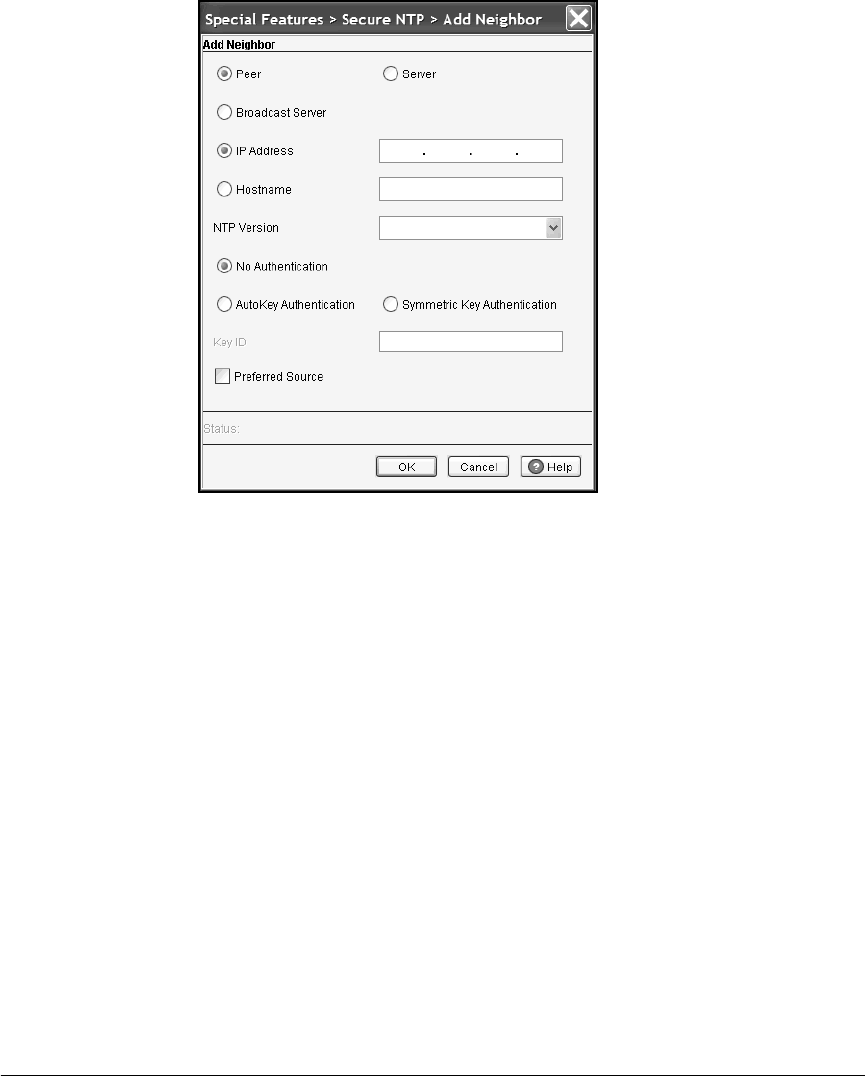

Figure 2-97. Add Neighbor Screen

3. Select Broadcast Server for the neighbor type.

4. In the IP Address field, enter the broadcast address for the module’s

subnetwork.

For example, you want the module to run the broadcast server on its VLAN

8 interface, which has the address 10.4.8.30/24. Enter 10.4.8.255.

5. In the NTP Version field, use the drop-down menu to select the version of

NTP to use with this configuration.

Although the latest version of the NTP implementation is NTPv4, the

official Internet standard is NTPv3.

6. Choose the authentication mode required by clients: No Authentication

or Symmetric Key Authentication.

When you implement NTP in broadcast mode, it is recommended to

configure your clients to require authentication. Otherwise, they might

receive the time from a rogue server.

Autokey authentication is not an option for broadcast services on the

Wireless Edge Services xl Module.
