2-168

Configuring the ProCurve Wireless Edge Services xl Module

Digital Certificates

6. Use the CLI to upload the CRL.

You access the Certificates Wizard, as well as manage trustpoints, in the

Management > Certificate Management screen.

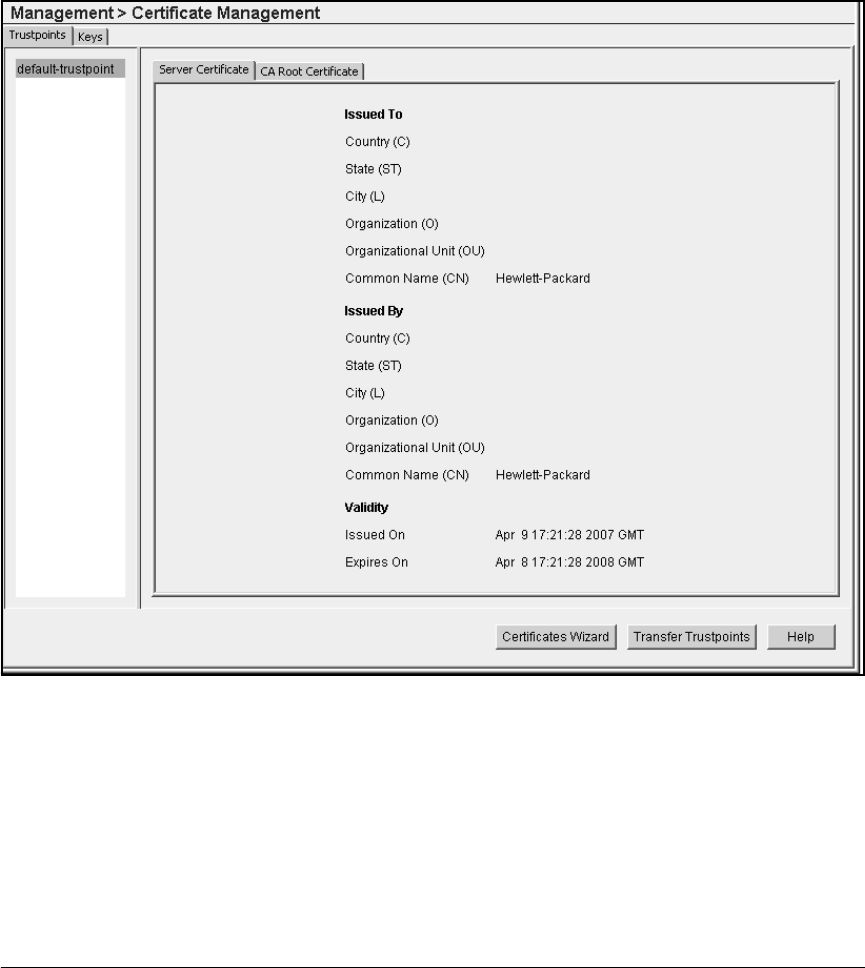

Figure 2-101.Management > Certificate Management Screen

The Management > Certificate Management screen has two main tabs:

■ Trustpoints—This screen lists the trustpoints on the Wireless Edge Ser-

vices xl Module and the certificates associated with each trustpoint. The

left panel displays all trustpoints configured on your module. Initially, the

only trustpoint is the “default-trustpoint.” The right panel displays the

details for the certificates in the selected trustpoint: the module’s own

certificate (Server Certificate) and the CA certificate (CA Root Certificate).
