2-175

Configuring the ProCurve Wireless Edge Services xl Module

Digital Certificates

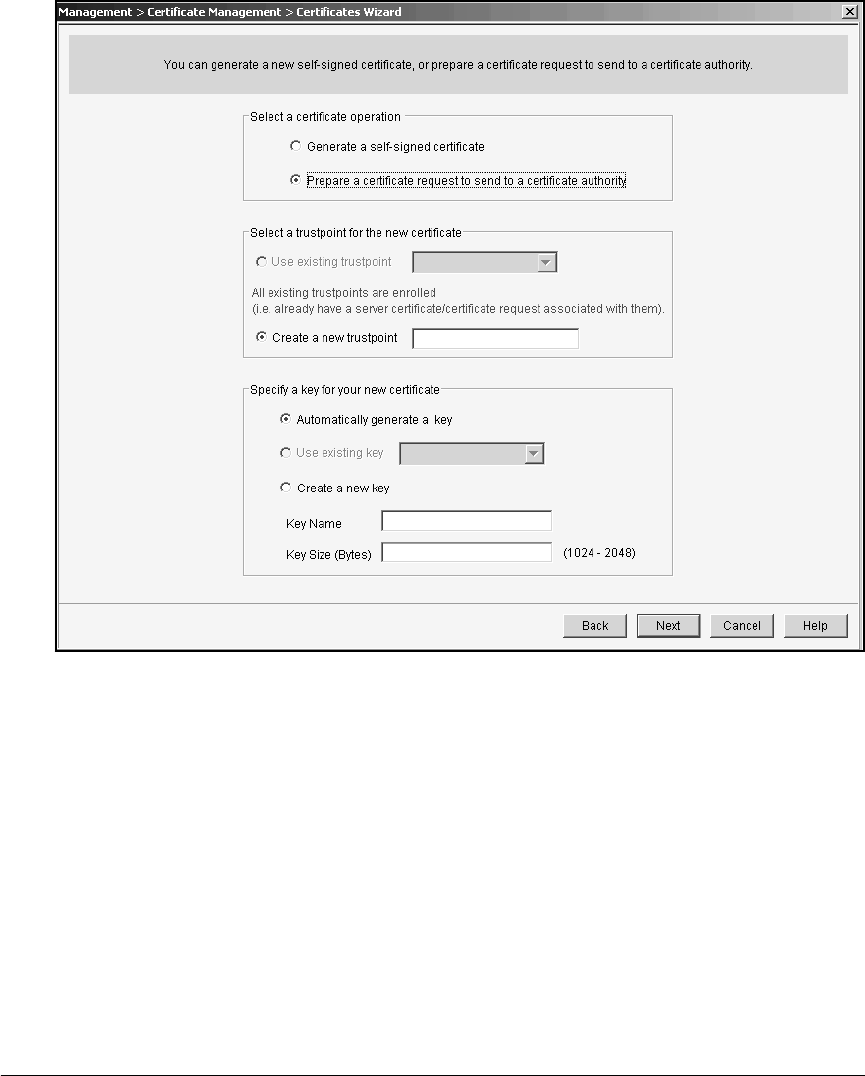

Figure 2-105.Certificate Wizard Options Screen (Certificate Request)

3. In the Select a certificate operation section, select Prepare a certificate

request to send to a certificate authority.

4. In the Select a trustpoint for the new certificate section, select one of the

following:

• Use existing trustpoint—You can select a trustpoint that you have

created previously from the drop-down menu. (This option is avail-

able only when an existing trustpoint does not have a current certifi-

cate.)

• Create a new trustpoint—Enter the trustpoint name in the field.
