2-177

Configuring the ProCurve Wireless Edge Services xl Module

Digital Certificates

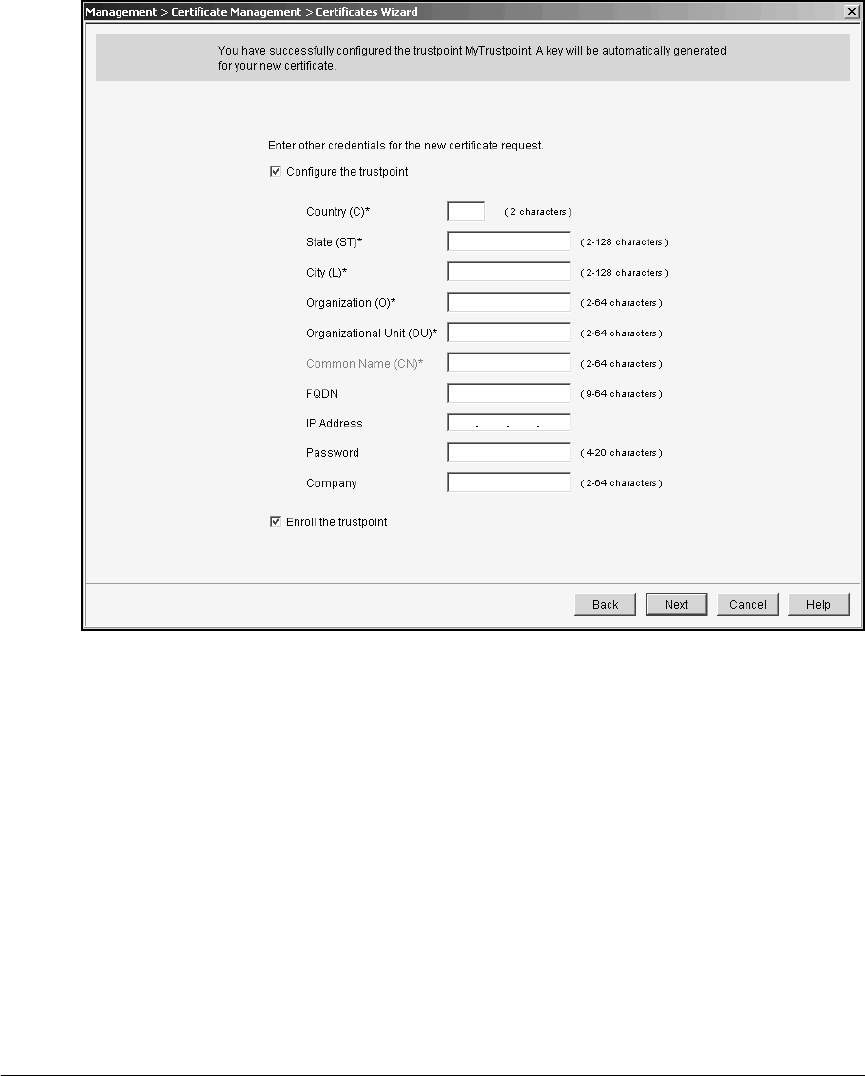

Figure 2-106.Certificate Credentials Screen (Certificate Request)

7. Check the Configure the trustpoint box and enter the following credentials

for the certificate:

• Country—the two-character country code (abbreviation) for your

country

• State—the state or province in which the module operates

• City—the city in which the module operates

• Organization—your organization (typically your company name)

• Organizational Unit—your organizational unit (typically your depart-

ment name)

• Common Name—the URL that you use to access the Web browser

interface. The text that you enter must replicate the URL exactly and

cannot include spaces or special characters other than periods ( . )

and hyphens ( - ). For example: WirelessServices.procurve.com
