2-182

Configuring the ProCurve Wireless Edge Services xl Module

Digital Certificates

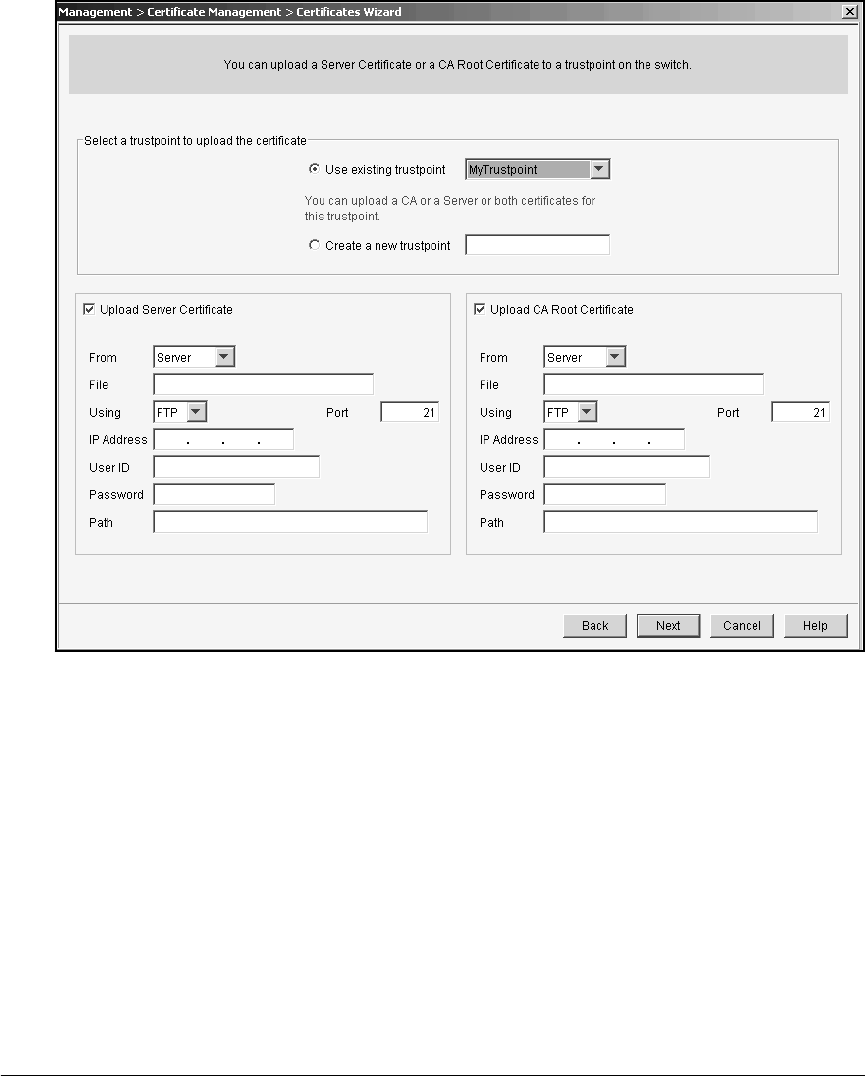

Figure 2-109.Upload Certificate to Trustpoint

3. In the Select a trustpoint to upload the certificate section, select one of the

following:

• Use existing trustpoint—to upload the certificate to an existing trust-

point; use the drop-down menu to select the trustpoint

• Create a new trustpoint—to upload the certificate to a new trustpoint;

enter the name of the new trustpoint in the field

4. Select the certificates to upload:

• To upload a server certificate, check the Upload Server Certificate box.

• To upload a CA root certificate, check the Upload CA Root Certificate

box.
