2-184

Configuring the ProCurve Wireless Edge Services xl Module

Digital Certificates

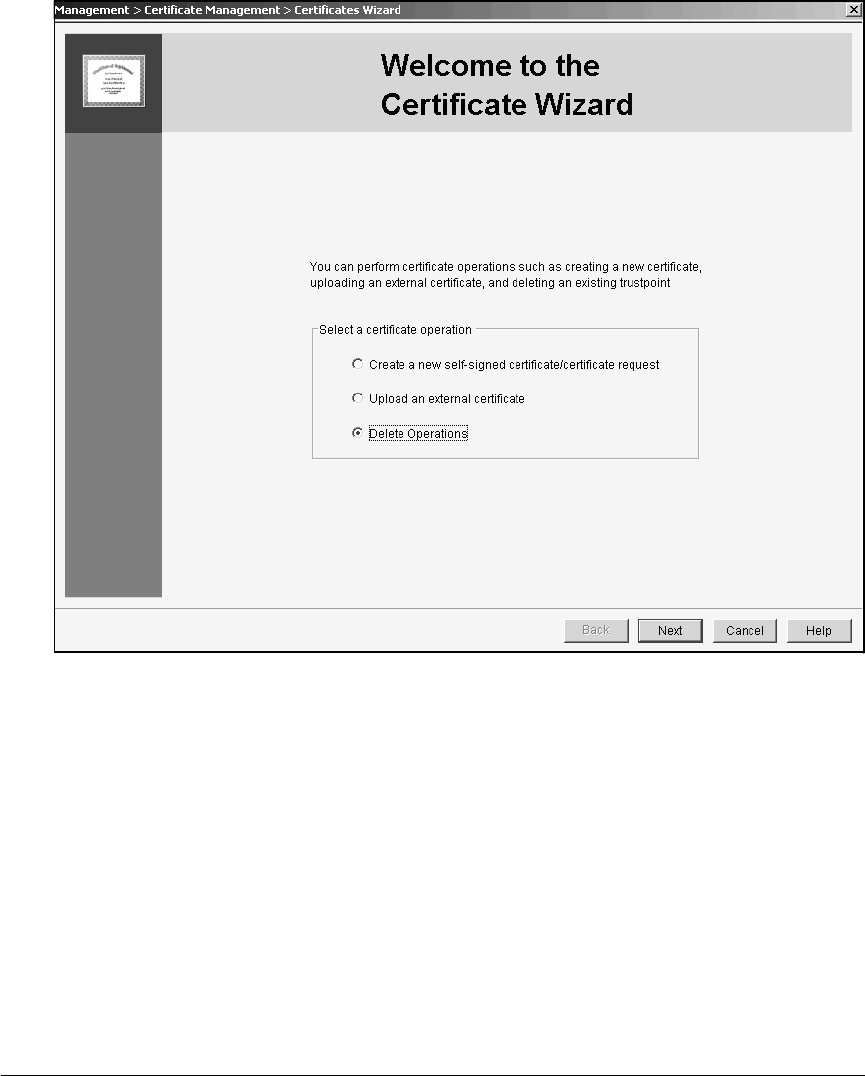

Figure 2-110.Certificates Wizard—Deleting Certificates

2. Click the Next button. The screen shown in Figure 2-111 is displayed.
