2-185

Configuring the ProCurve Wireless Edge Services xl Module

Digital Certificates

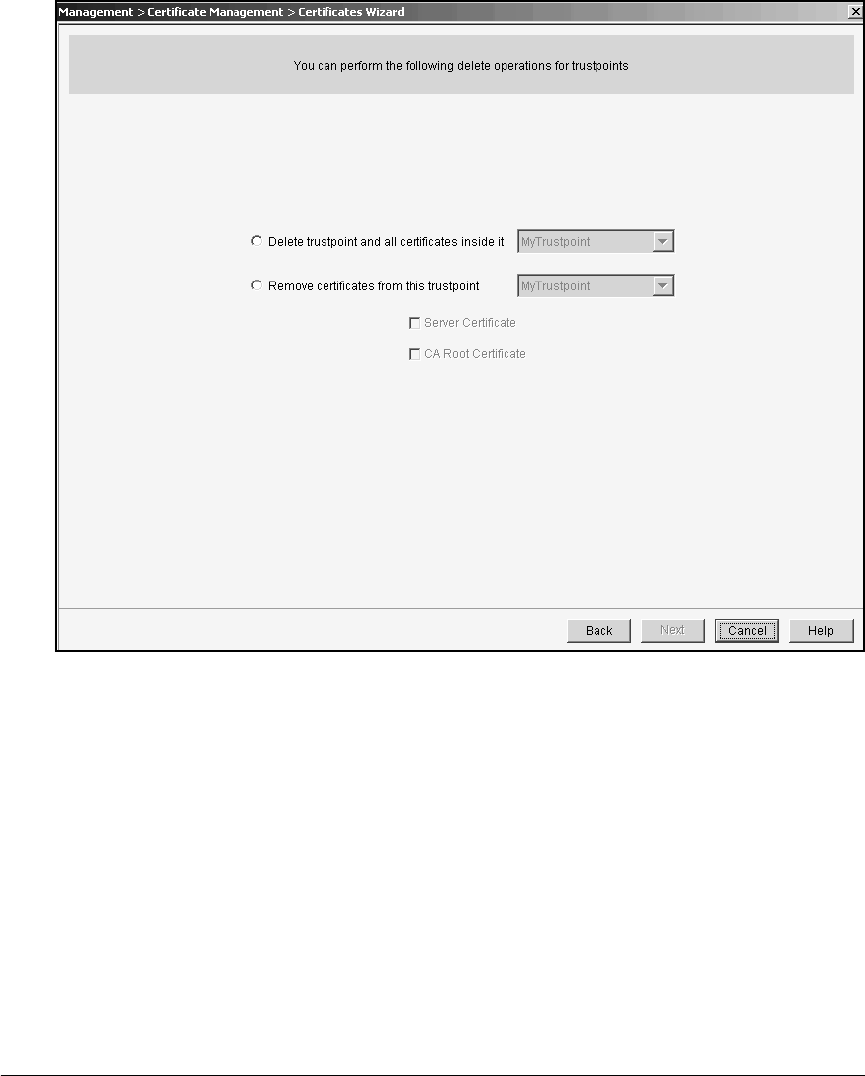

Figure 2-111.Certificate Wizard Delete Operations

3. Select your delete operations:

• To delete an entire trustpoint, select Delete trustpoint and all certificates

inside it. Then use the drop-down menu to select the trustpoint to

delete.

This selection deletes the trustpoint and everything it contains,

including certificates, a certificate request, and a CRL.

• To delete a certificate but leave the trustpoint, follow these steps:

i. Select Remove certificates from this trustpoint.

ii. Use the drop-down menu to select the trustpoint that contains

the certificate.

iii. Check the Server Certificate box or the CA Root Certificate box

(or both).
