3-4

Radio Port Configuration

Country-Code and Regulatory Procedures

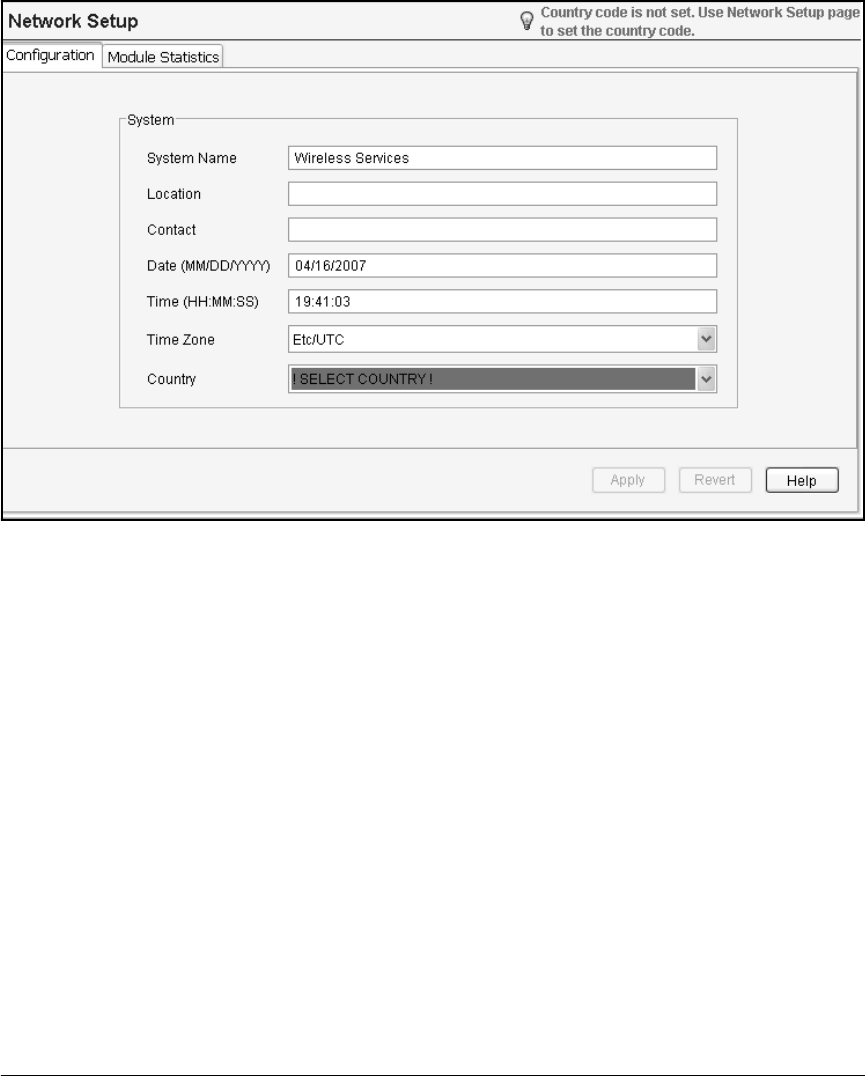

Figure 3-1. Configuring the Country Code

Refer to http://www.hp.com/rnd/support/manuals/rports.htm for infor-

mation about each country’s regulations and permissible radio settings.
