1-9

Introduction

ProCurve Wireless Edge Services xl Module

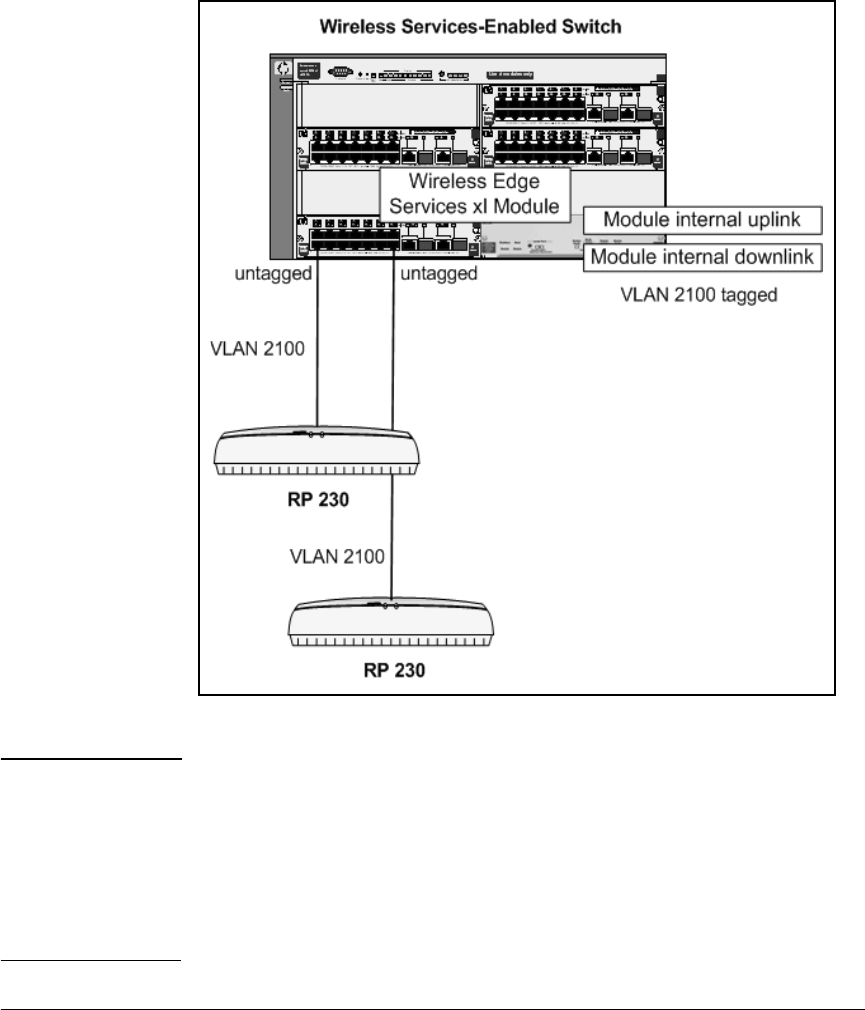

Figure 1-1 shows the VLAN tagging if auto-provisioning remains enabled on

the wireless services-enabled switch.

Figure 1-1. Auto-Provisioned Radio Port VLANs

Note If, for whatever reason, you do not want an RP placed in the default Radio

Port VLAN, you can manually create a different Radio Port VLAN on the

wireless services-enabled switch. (In this case, you should turn off auto-

provisioning.) The instructions in “Manually Establishing a Radio Port VLAN”

on page 1-10 apply to a wireless services-enabled switch as well as to an

infrastructure switch.

However, take care never to tag the same VLAN on the uplink and downlink port.
