3-6

Radio Port Configuration

Configuring Radio Settings

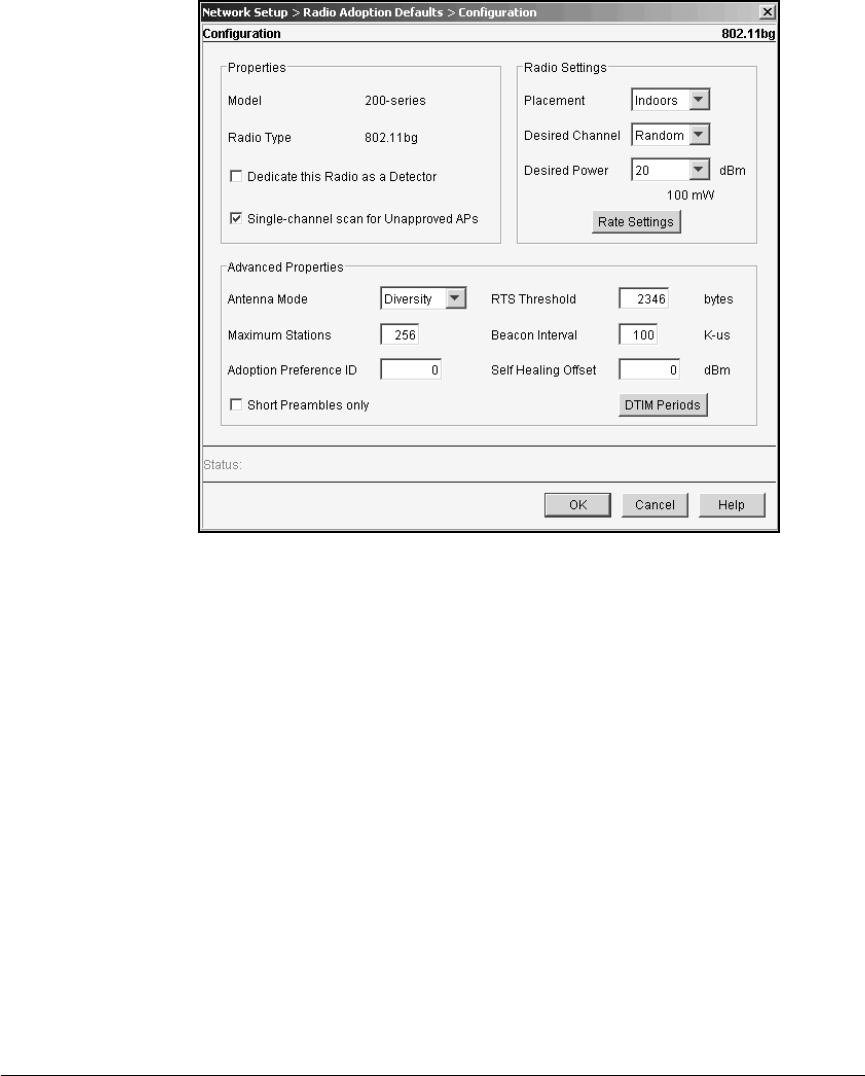

Figure 3-2. Default Configuration Screen for a Radio Type

The screen for configuring the radio adoption default settings is labeled

Network Setup > Radio Adoption Defaults > Configuration > Edit. The top left on

the screen reads Configuration, and the top right displays the radio type: 802.11a

or 802.11bg. For ease of reference, this guide will call that screen a radio type’s

default Configuration screen.

The screen for configuring radio settings on a particular radio is labeled

Network Setup > Radio > Configuration > Edit. The top left also reads Configura-

tion, but the top right displays the description for that particular radio. The

guide will refer to that screen as a radio’s Configuration screen.
