3-7

Radio Port Configuration

Configuring Radio Settings

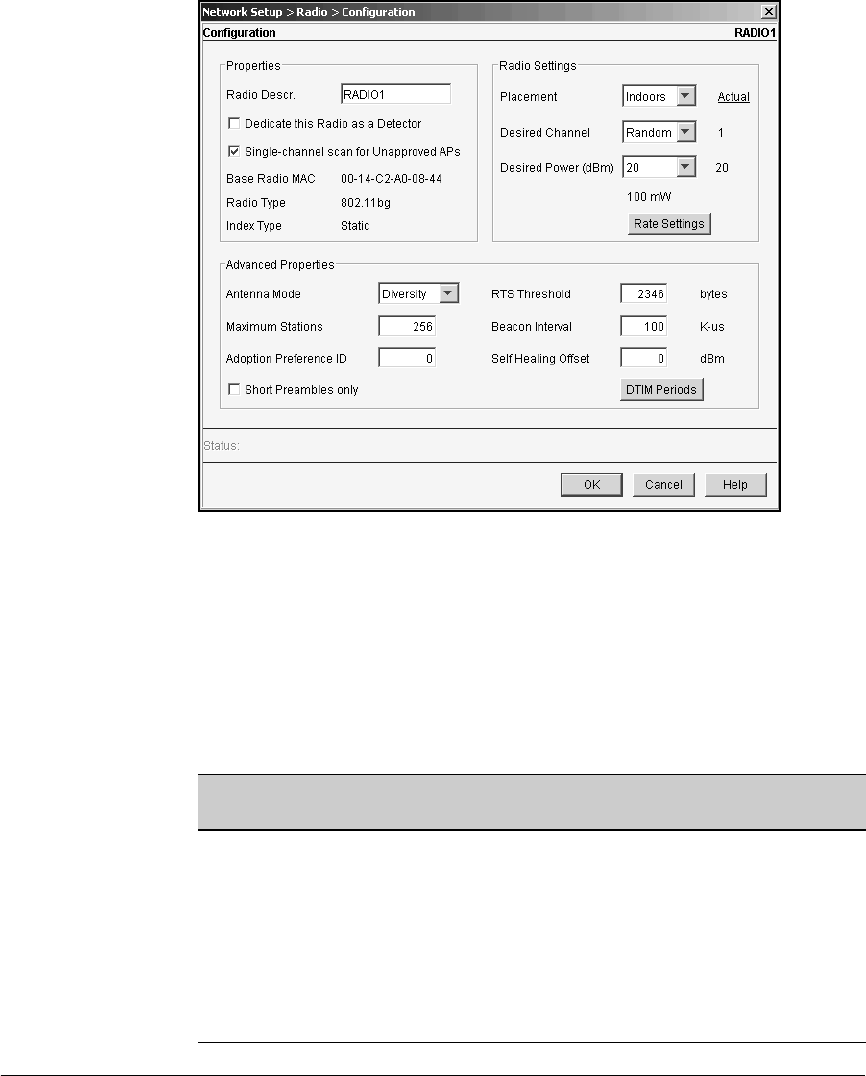

Figure 3-3. Configuration Screen for a Radio

Be careful to make configuration changes on the correct screen. Otherwise,

the changes will not take effect as expected.

Table 3-1 summarizes how you edit the radio configurations and how the

Wireless Edge Services xl Module deploys them. For more information, see

Chapter 1: Introduction.

Table 3-1. Radio Configurations

Radio Adoption Default

Configuration

Configuration for a Targeted Radio

Configuration screen Network Setup > Radio

Adoption Defaults

Network Setup > Radio

Deployed to any newly adopted radio a particular, identified radio

Deployed when the module adopts a new,

unconfigured radio

• the module adopts the

unadopted, but identified, radio

• you apply changes to the

configuration of an already

adopted radio
