3-9

Radio Port Configuration

Configuring Radio Settings

As described above, you establish settings for a radio adoption default config-

uration from a radio type’s default Configuration screen. To access this screen,

complete these steps:

1. Select Network Setup > Radio Adoption Defaults and click the

Configuration tab.

This screen includes two rows, one for 802.11a and one for 802.11bg. Each

row displays basic settings currently configured for that type of radio:

• placement

• channel

• power in dBm and power in mW

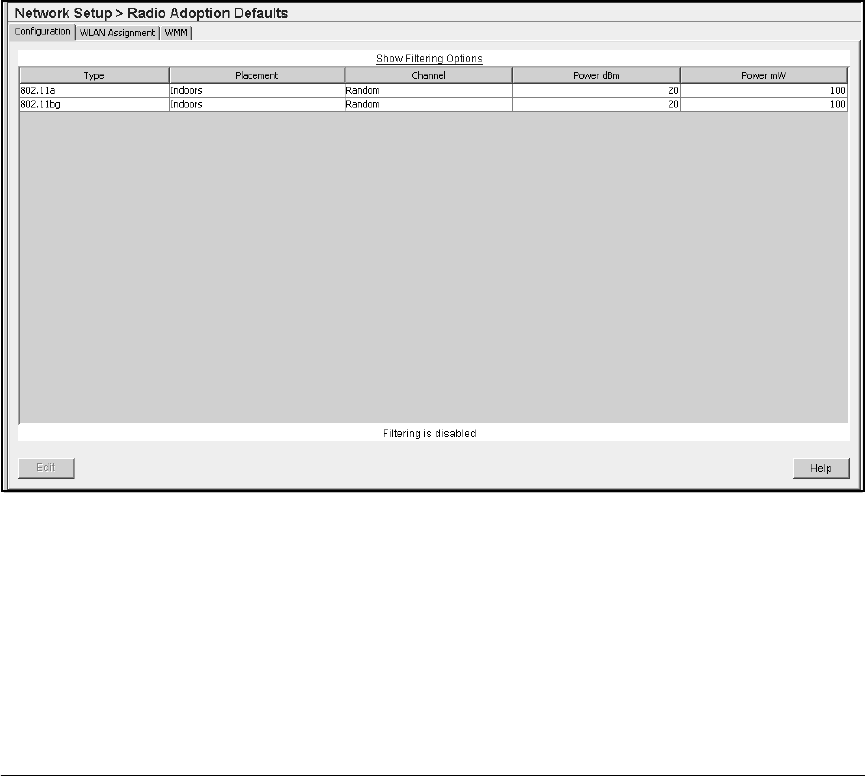

Figure 3-4. Accessing the Radio Adoption Default Configurations

2. Select the radio type for which you want to alter the configuration.

3. Click the Edit button. The Configuration screen for that radio type is

displayed. (See Figure 3-5.)
