3-12

Radio Port Configuration

Configuring Radio Settings

Configure the basic radio settings in the default Configuration screen’s Radio

Settings section, as shown in Figure 3-6. These settings include:

■ radio placement

■ channel selection method

■ transmit power

■ rate settings

You should configure the settings in this order; the radio placement setting

dictates available channel options, and the channel selection method affects

available power levels.

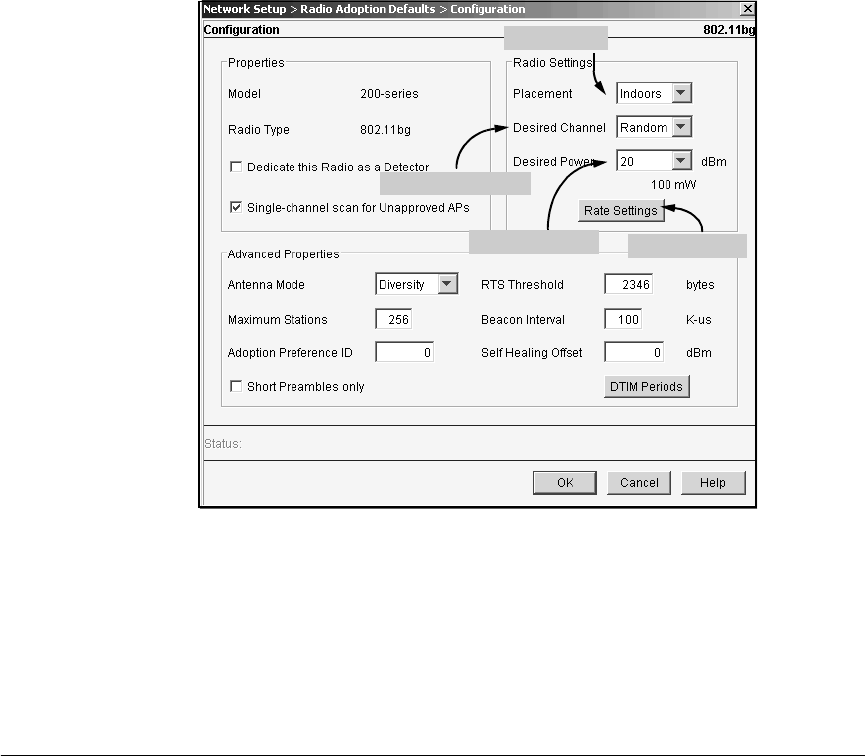

Figure 3-6. Radio Adoption Default Configuration Radio Settings

Defining the Radio Placement. You can configure a radio for indoor use

or for outdoor use. Because a radio adjusts its power and channel settings

according to its placement, it is important to configure this setting accurately.

Not doing so can create various problems, and can even cause you to break

the law. For example, an outdoor RP may need to transmit at higher power to

Placement

Channel Selection

Power Options

Rate Settings
