3-15

Radio Port Configuration

Configuring Radio Settings

Note A warning box may be displayed, reminding you to be careful when setting a

power for a radio that is using external antennas. Verify that the power and

channel settings are within local limits, and then click the OK button.

Configuring Rate Settings. You can specify the data rates, in Mbps, that

default radios support for traffic passing between the radio and a station.

These data rates determine the types of wireless stations that radios will

support.

On the default Configuration screen for a radio type, click the Rate Settings

button to display a screen similar to the one shown in Figure 3-7.

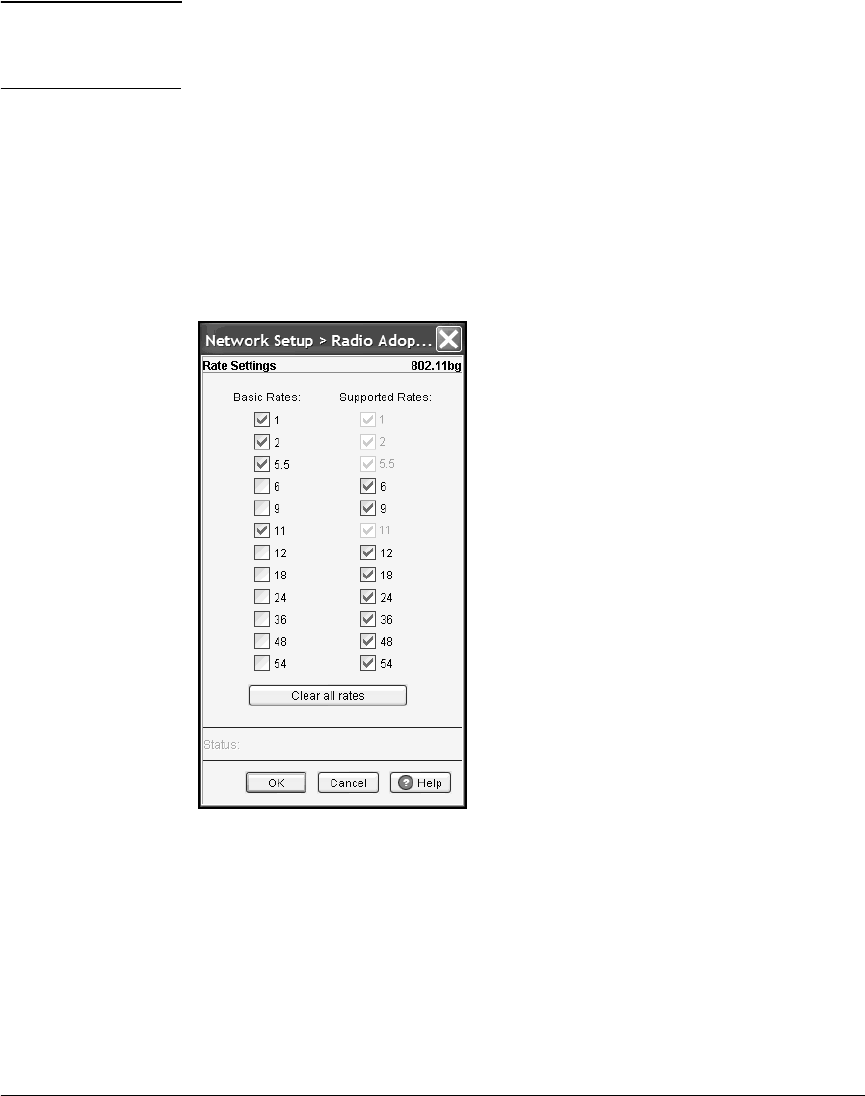

Figure 3-7. Rate Settings Screen

On this screen, you can set basic and supported rates. The data rates displayed

depend on which type of radio you are configuring.
