1-10

Introduction

ProCurve Wireless Edge Services xl Module

Manually Establishing a Radio Port VLAN. If you connect an RP to an

infrastructure switch instead of directly connecting it to the wireless services-

enabled switch, you must manually establish the Radio Port VLAN on that

infrastructure switch.

The wireless services-enabled switch still uses auto-provisioning to create

VLAN 2100 and tag the module’s internal downlink port for this VLAN. How-

ever, you must configure the infrastructure switch’s port that connects to the

RP as an untagged member of the Radio Port VLAN.

Remember that the external switch interfaces that link the infrastructure

switch and the wireless services-enabled switch must also carry traffic on the

Radio Port VLAN. You must make these interfaces either tagged or untagged

for the Radio Port VLAN, depending on whether they must carry other traffic

in addition to the wireless traffic transmitted to and from the RP. Figure 1-2

shows the VLAN assignments if you connect an RP to an infrastructure switch.

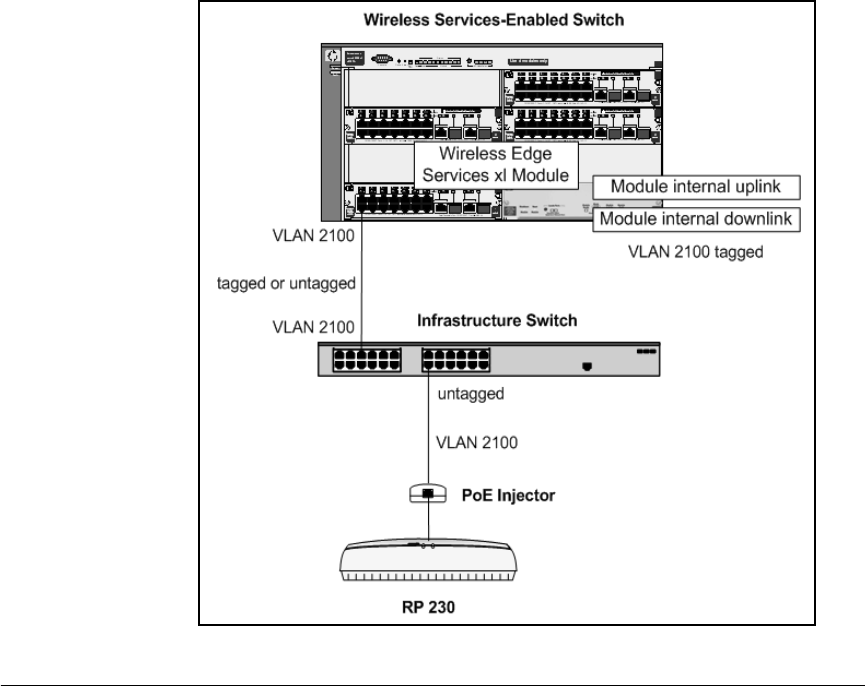

Figure 1-2. Manually Establishing a Radio VLAN for an Indirectly Connected RP
