Introduction
ProCurve Wireless Edge Services xl Module
Although it is usually a good idea to use auto-provisioning on the wireless
services-enabled switch and to create the same Radio Port VLAN on the
infrastructure switches that directly connect to RPs, you can use any valid
VLAN numbers for Radio Port VLANs. Simply remember to tag the Wireless
Edge Services xl Module’s downlink port for that VLAN.

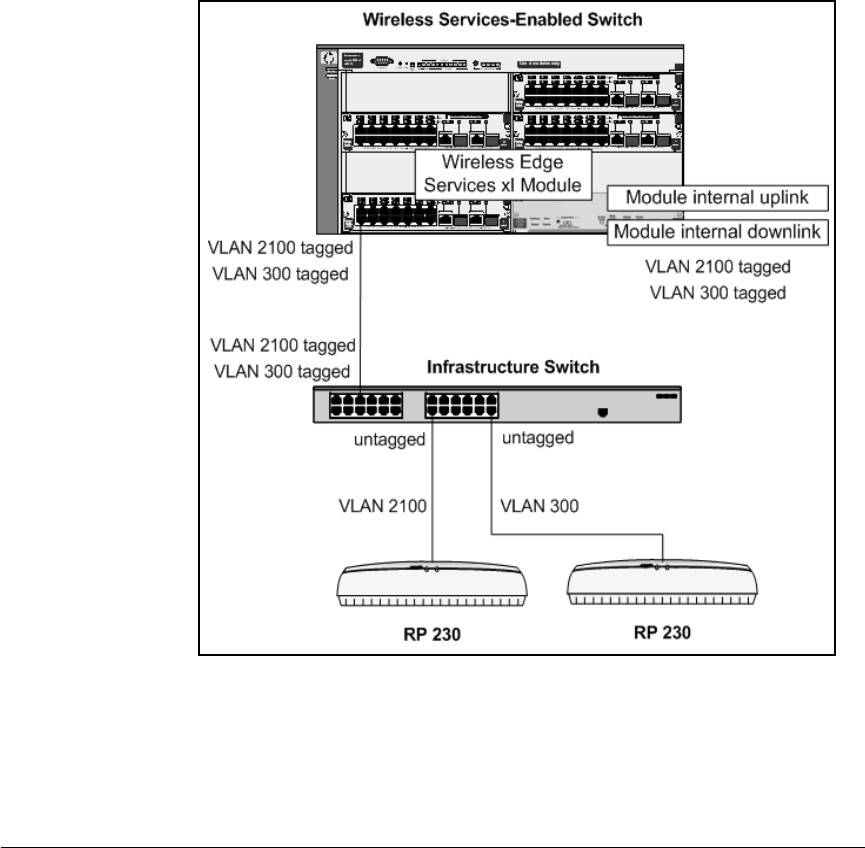

In Figure 1-3, the network administrator has decided to use VLAN 300 for one
of the RPs. (Although you typically place all RPs in the same VLAN, such a
design is not mandatory.)
Figure 1-3. Manually Creating Radio Port VLANs
Remember that the internal downlink port must always be tagged for the
Radio Port VLAN, while the external switch port that connects to the RP must
always be untagged.
