3-26

Radio Port Configuration

Configuring Radio Settings

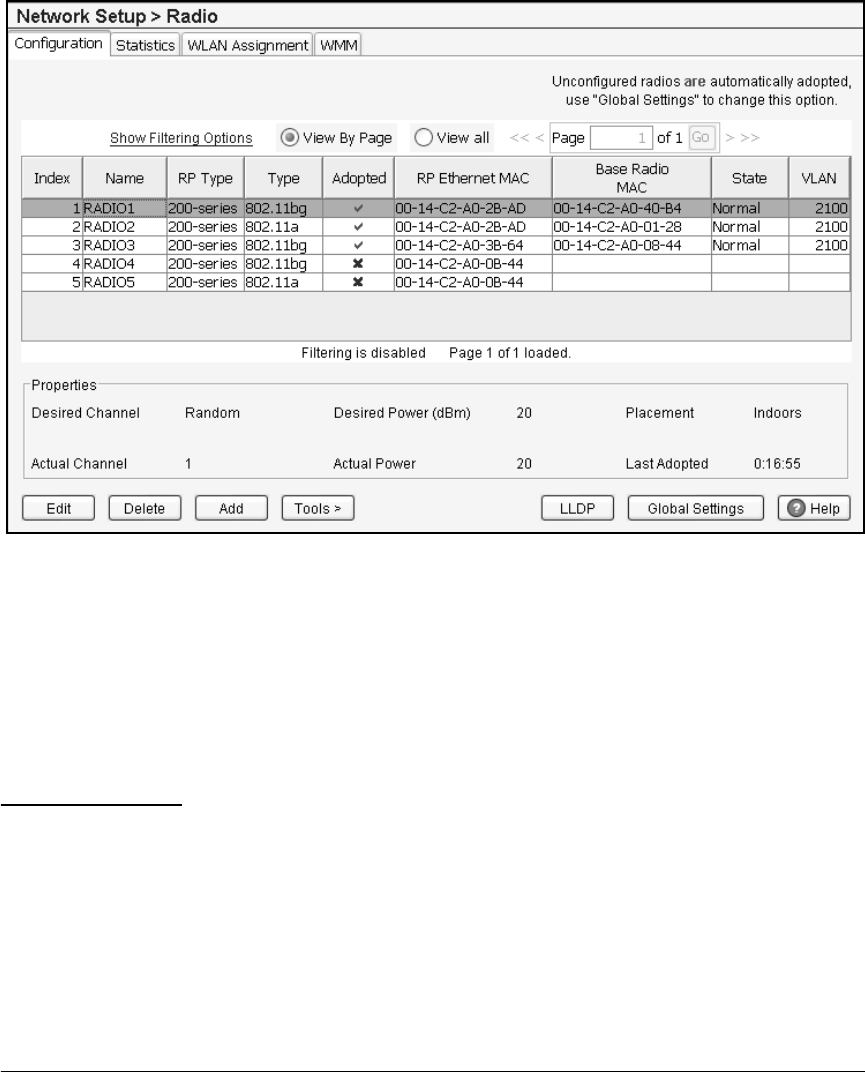

Figure 3-10. Network Setup > Radio > Configuration Screen

The Network Setup > Radio > Configuration screen lists all of the radios that the

Wireless Edge Services xl Module has identified and their current settings and

status. Radios are listed by index number. (The first radio that the module

identifies is typically assigned the first index, and so on.) Radios are further

identified by a name and a type.

Refer to the Adopted column to determine whether an identified radio has

actually been adopted.

Note An RP does not have to be adopted before you create a configuration for its

radio (or radios); it can simply be identified in the list. An an unadopted radio

might display in the list because:

■ the module had once adopted the RP

■ you added the RP radio manually using the Add button
