Radio Port Configuration
Configuring Radio Settings

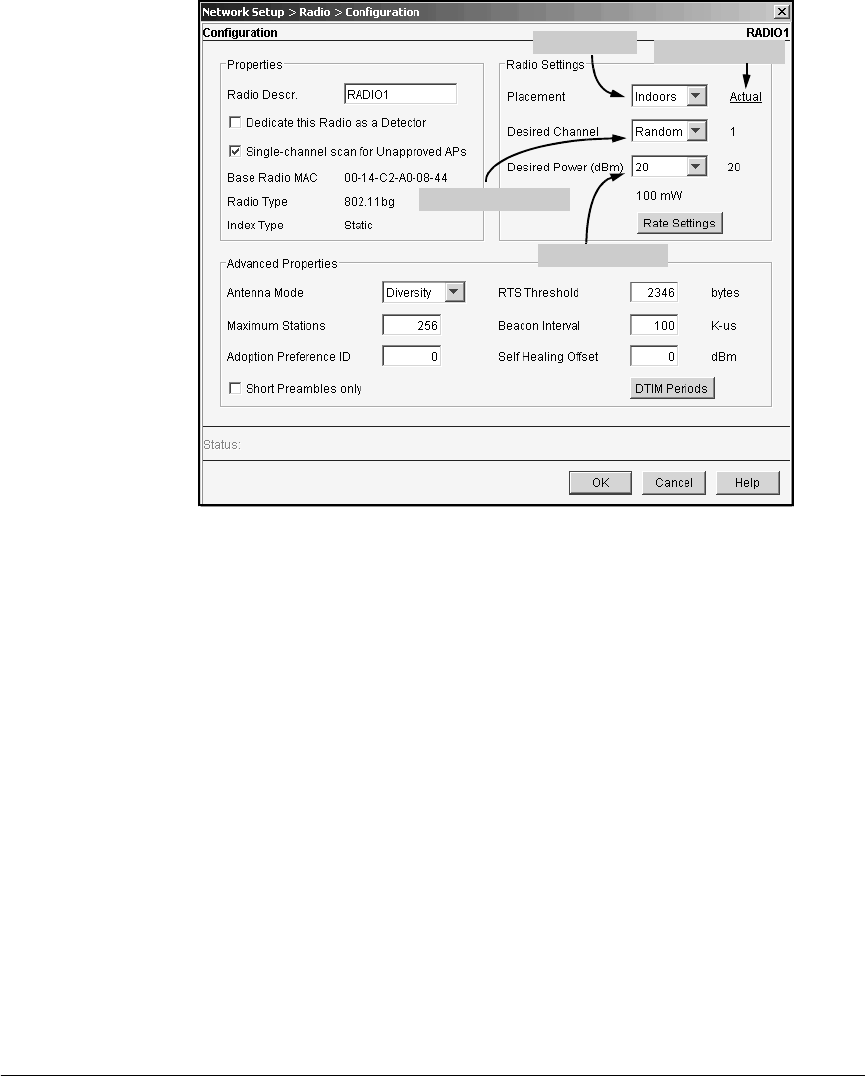

Figure 3-12. Radio Configuration Radio Settings
To change the radio settings, complete these steps:
1. Select Network Setup > Radio and click the Configuration tab.
2. Select the radio that you want to configure and click the Edit button.
3. In the Placement field, use the drop-down menu to select the placement,
Indoors or Outdoors.
It is very important that the radio’s placement be accurate. (See “Defining
the Radio Placement” on page 3-12 for more information.)
4. In the Actual column (see Figure 3-12), view the channel that was selected,
either randomly or using ACS, when the radio was adopted. You can now
select a channel manually.
Actual Column
Placement
Channel Selection
Power Options
