3-35

Radio Port Configuration

Configuring Radio Settings

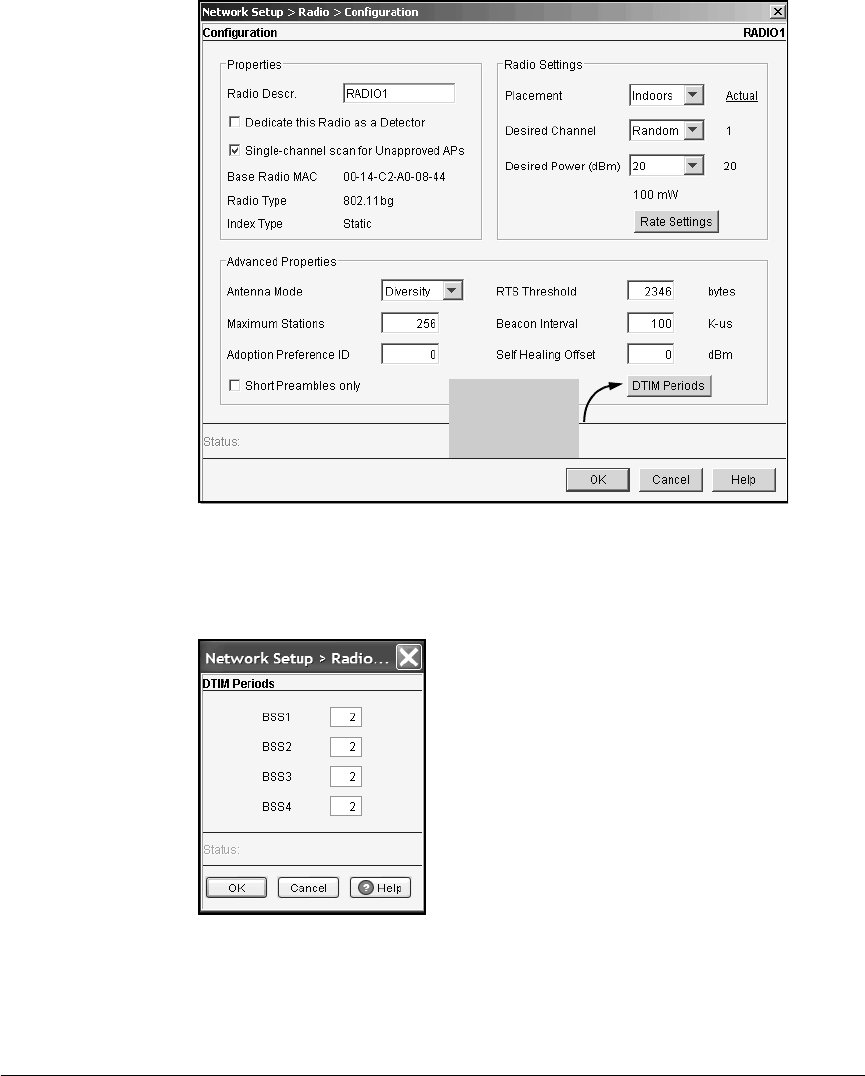

Figure 3-13. Radio Configuration Radio Settings

3. In the Advanced Properties section, click the DTIM Periods button. The DTIM

Periods screen is displayed.

Figure 3-14. DTIM Periods

4. In the field for each BSS, enter the number of beacons between DTIMs.

5. Click the OK button.

Set different

DTIM periods

for the radio’s

four BSSIDs
