3-37

Radio Port Configuration

Configuring Radio Settings

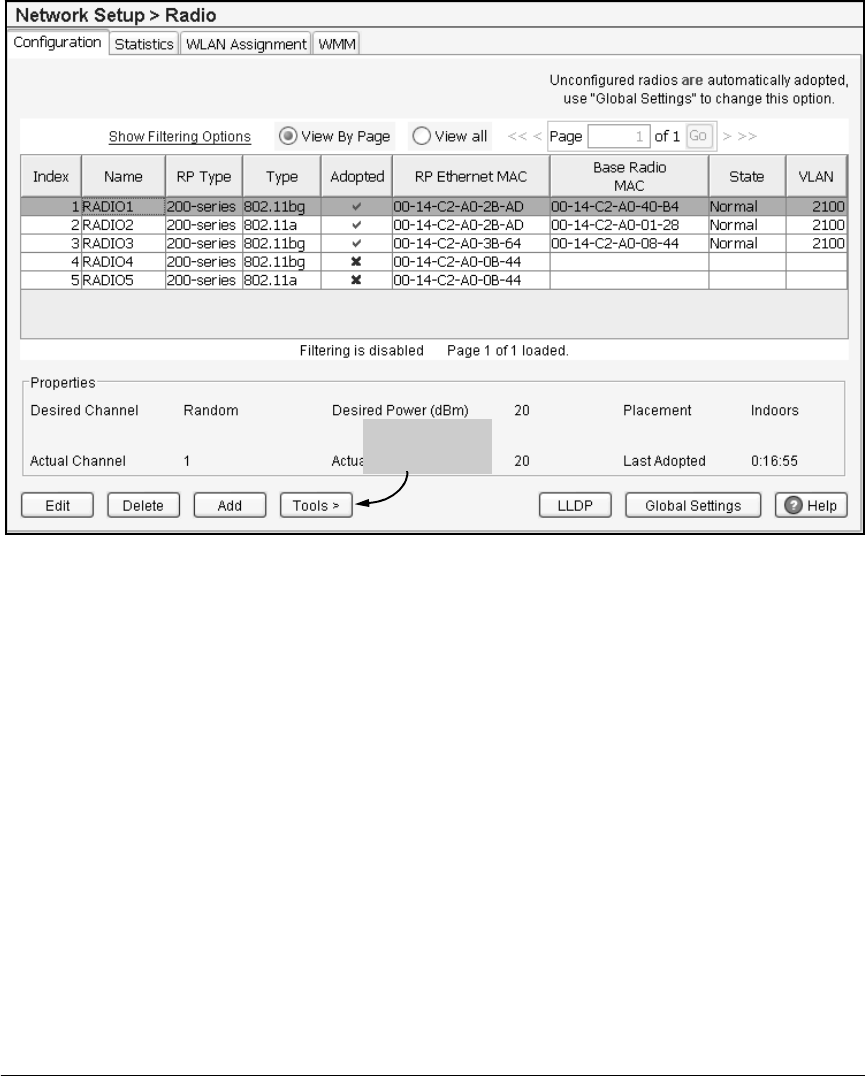

Figure 3-15. Running ACS on All RP Radios

2. Click the Tools button.

3. On the pop-up menu that is displayed, select Run ACS Now.

The Wireless Edge Services xl Module scans all channels and discovers which

radios are adopted and using which channels. The module then analyzes the

radios’ channels and moves each ACS-enabled radio to the channel where it

is least likely to experience interference from other radios. (See Figure 3-16.)

Running ACS is

one of the Tools
