3-38

Radio Port Configuration

Configuring Radio Settings

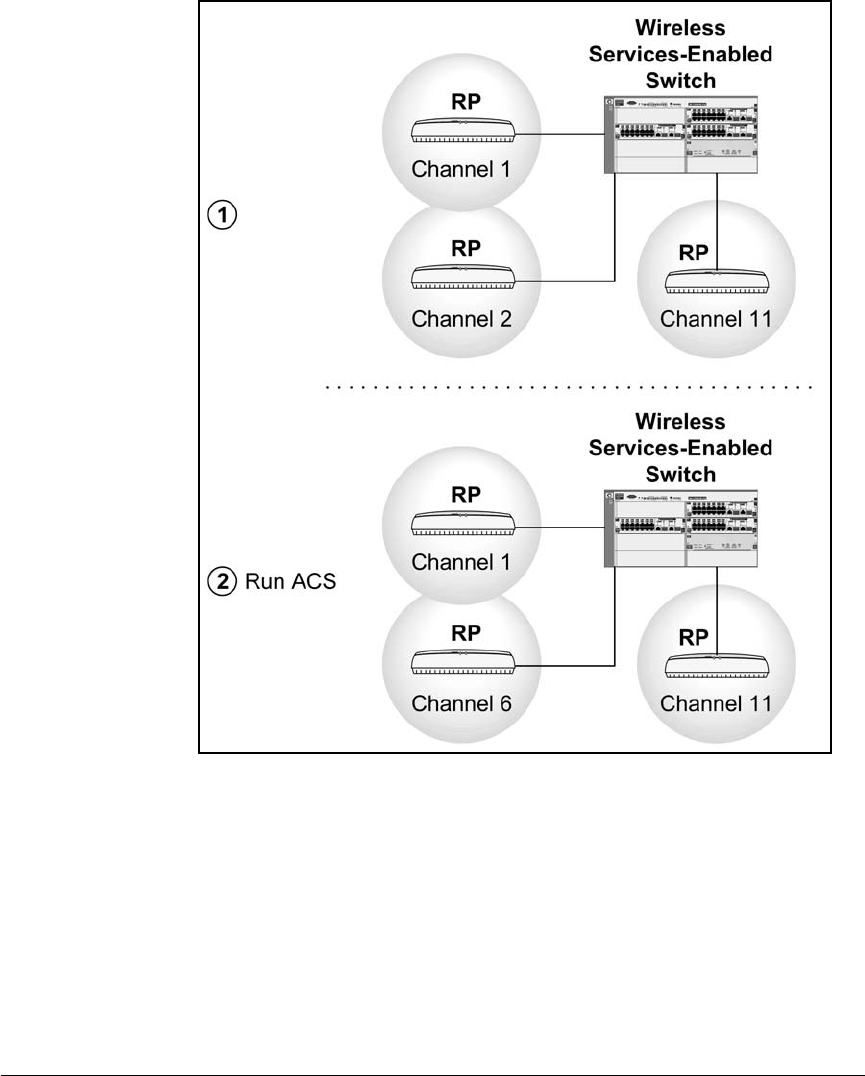

Figure 3-16. Running ACS

Resetting a Radio

It may become necessary for you to reboot an RP. For a dual-radio RP (such

as the RP 220 or 230), you can either reset the entire RP or only one of its

radios. Complete these steps:

1. Select Network Setup > Radio and click the Configuration tab.

2. Select the radio that you want to reset and click the Tools button.
