3-39

Radio Port Configuration

Configuring Radio Settings

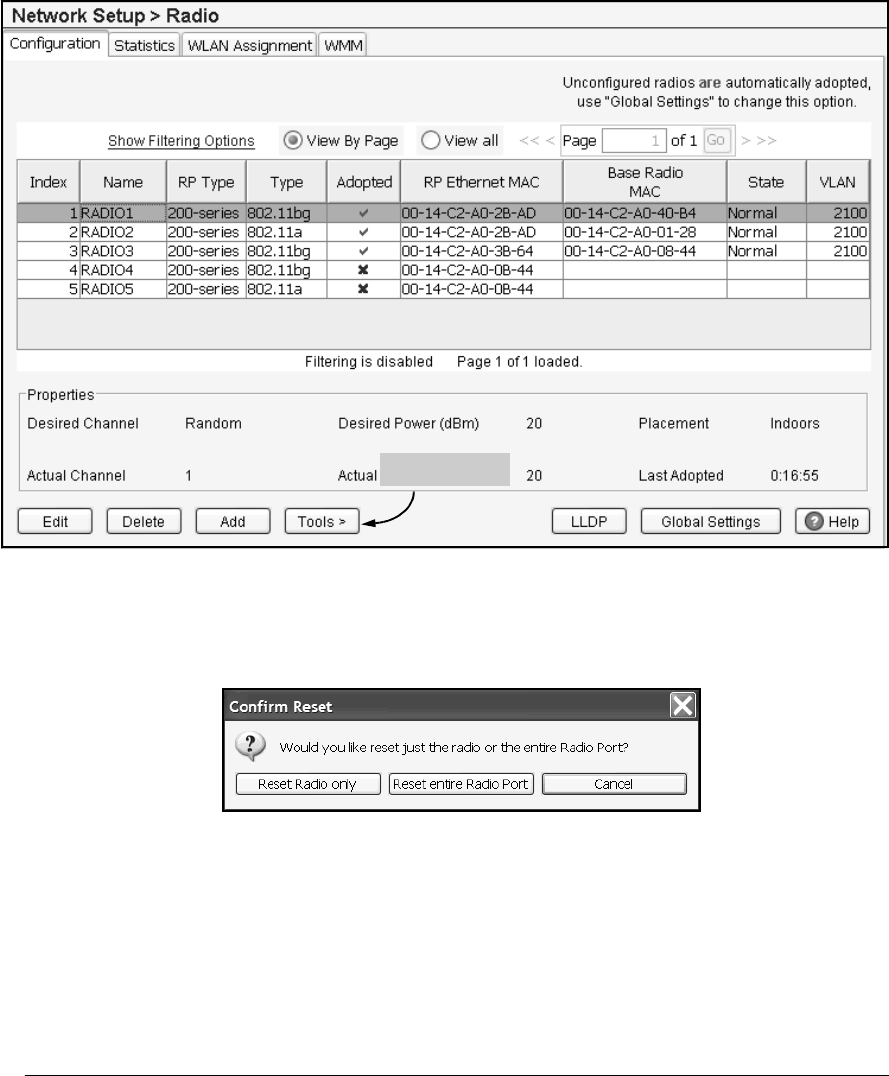

Figure 3-17. Resetting a Radio

3. On the pop-up menu that is displayed, select Reset. The Confirm Reset

screen is displayed.

Figure 3-18. Resetting a Radio

4. Select a reset option:

• If you click the

Reset Radio only

button, only the selected radio will reset.

• If you click the Reset entire Radio Port button, the RP for the selected

radio will reset, along with both radios on the same RP. Each radio

will reset with its specific configuration (not with the radio adoption

default configuration).

Reset Radio1
