3-42

Radio Port Configuration

Configuring Radio Settings

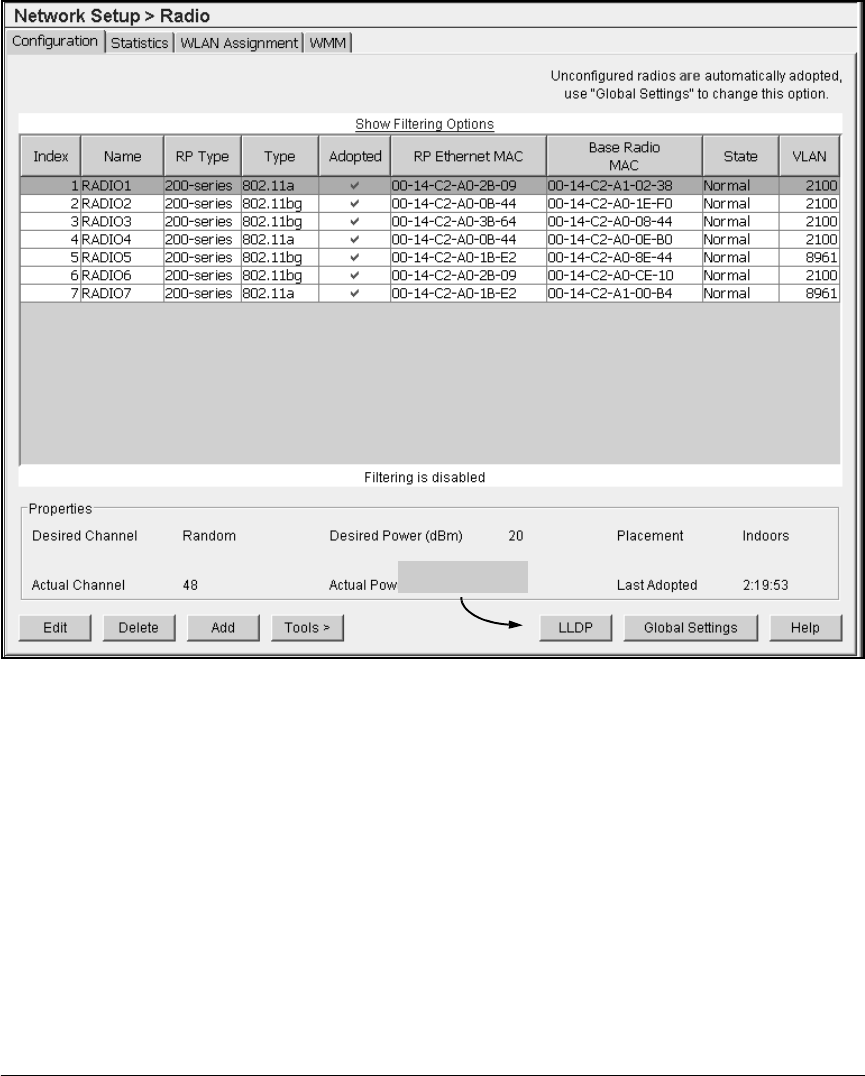

Figure 3-20. LLDP Button

The LLDP screen is displayed.

If you select a radio before clicking the LDAP button, the MAC Address

field is automatically filled with the RP’s Ethernet MAC address. See

Figure 3-21.

LLDP Button
