3-43

Radio Port Configuration

Configuring Radio Settings

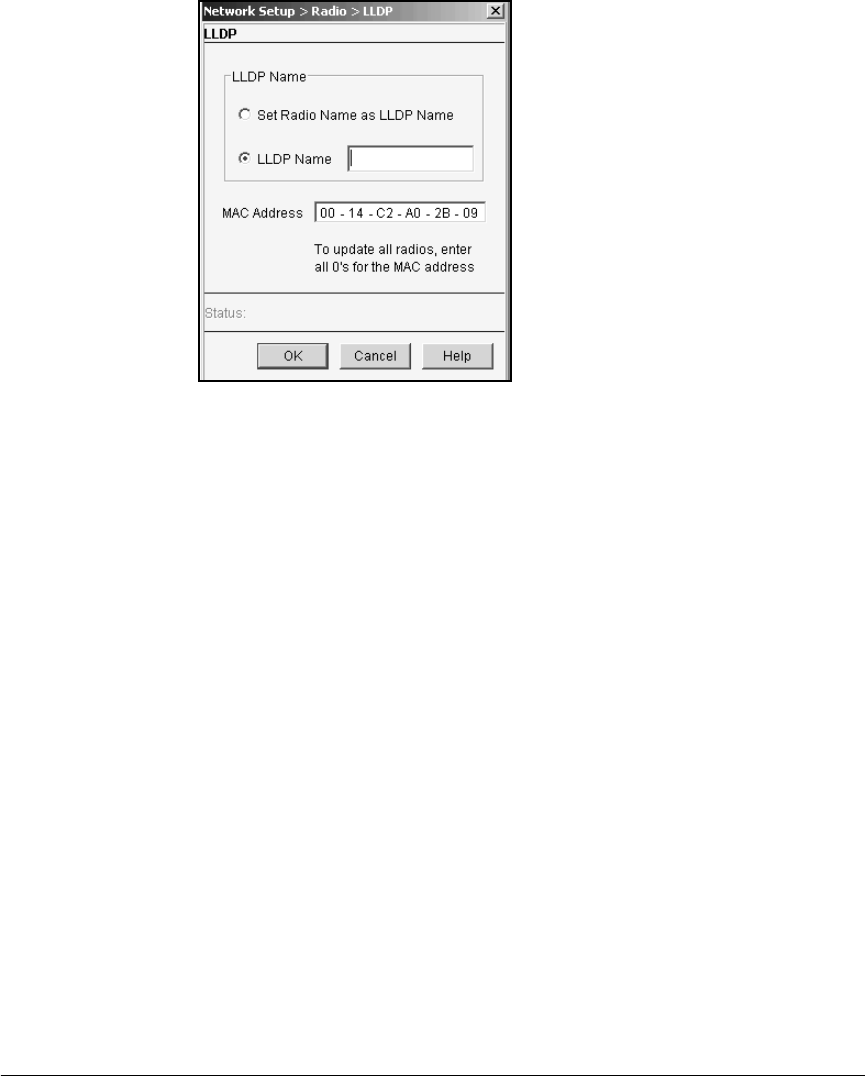

Figure 3-21. LLDP Screen

You might have already customized the radio’s name. Select Set Radio

Name as LLDP Name to use this name for the LLDP name as well.

Alternatively, manually enter a name in the LLDP Name field. (The name

can include alphanumeric and special characters, as well as spaces.)

In the MAC Address field, enter the Ethernet MAC address of the RP. Or

enter 00-00-00-00-00-00 to apply the LLDP name to all radios.

Then click the OK button.

Note that the LLDP name applies to the RP as a whole. If the RP has

another radio, that radio’s LLDP name is automatically changed when you

click the OK button.
