Wireless Local Area Networks (WLANs)
Configuration Options: Normal Versus Advanced Mode

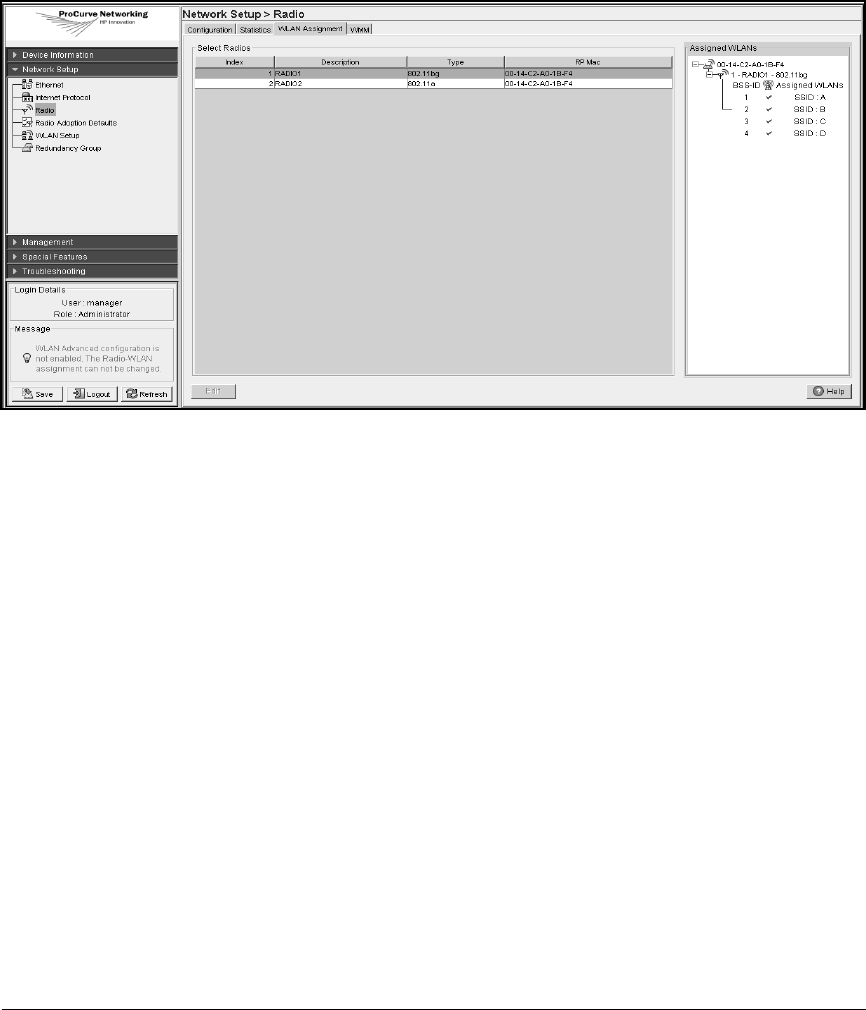

Figure 4-2 shows the screen in which you can verify that radios have received
the WLAN assignment.
Figure 4-2. Assigning WLANs to a Radio (Normal)
To view the screen in Figure 4-2, select Network Setup > Radio and click the
WLAN Assignment tab. Select a radio, and information is displayed in the area
in the right of the screen, called Assigned WLANs.
The Assigned WLANs area lists the four BSSIDs on the radio and the SSID (or
SSIDs) assigned to each BSSID. View this screen whenever you want to see
exactly which WLANs each RP radio in your wireless network supports.
Note that if the RP includes two radios, each WLAN is matched to correspond-
ing BSSIDs on each radio, as shown on the RP 230 in Figure 4-1. Figure 4-3
shows the screen in the Web browser interface in which you can verify that
radio 2 has also received the WLAN configuration. (To view the SSID for both
radios at the same time, hold down the
Shift key and select the two.)
