4-8

Wireless Local Area Networks (WLANs)

Configuration Options: Normal Versus Advanced Mode

As always, if the RP includes two radios, every WLAN is assigned to a BSSID

on each.

This process is illustrated in the figures below.

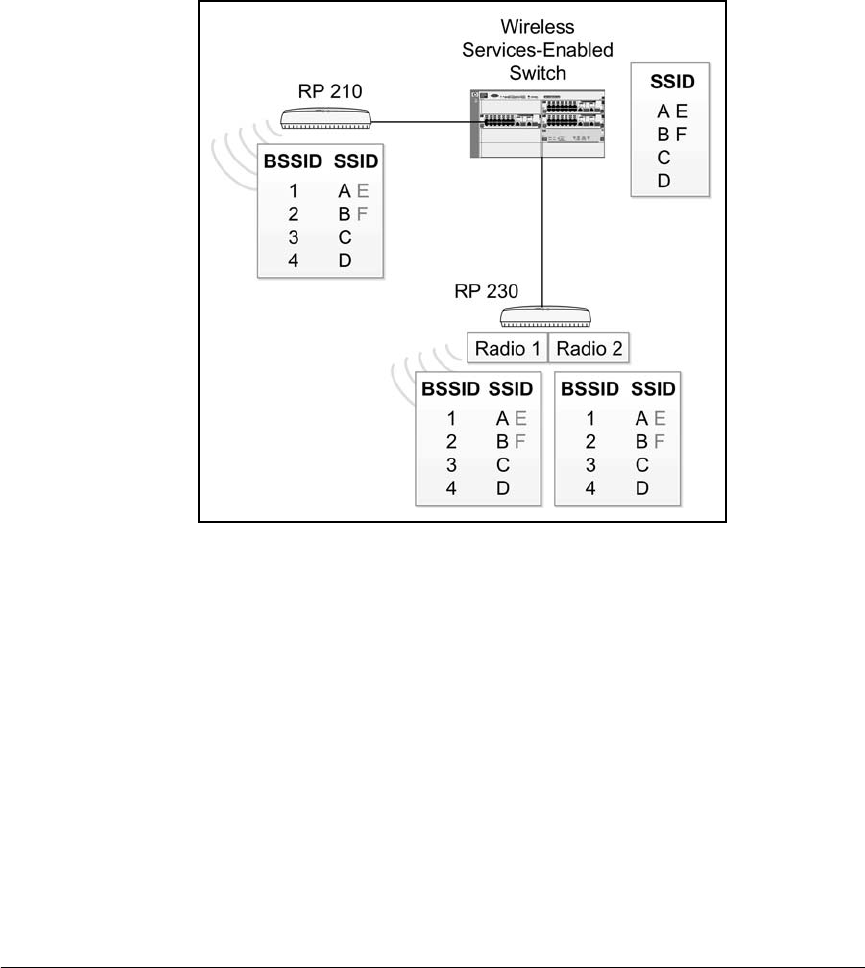

Figure 4-4. Assigning Six WLANs to a Radio (Normal)
