4-10

Wireless Local Area Networks (WLANs)

Configuration Options: Normal Versus Advanced Mode

In other words, with normal configuration, WLANs 5 through 16 always oper-

ate in partially closed system. If you want these WLANs to operate in com-

pletely closed system, you should disable responses to probe requests. You

cannot disable closed system.

See “Enabling Closed System Operations” on page 4-66 to learn more about

configuring this features described above.

Finally, again, note that the WLAN assignments are constant. If, for whatever

reason, you configure and enable WLANs 2, 4, 5, and 6 instead of 1, 2, 3, and

4, SSID B (WLAN 2) is assigned to BSSID 2, not BSSID 1. SSID F (WLAN 6) is

also assigned to BSSID 2, and no SSID is assigned to BSSID 3. (See Figure 4-6.)

For this reason, you should generally configure WLANs in order, beginning at

index 1.

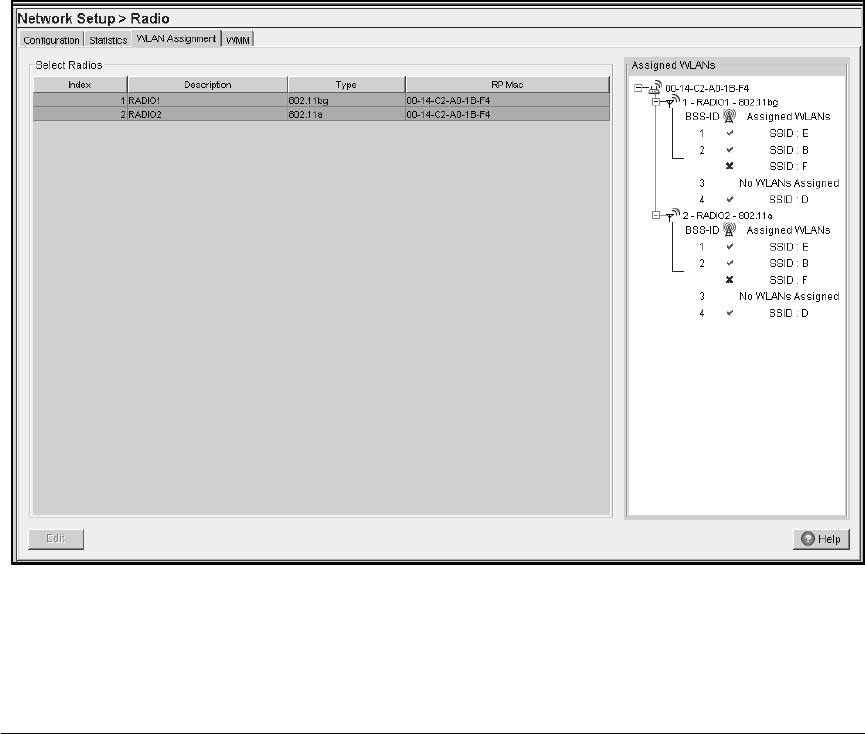

Figure 4-6. Enabling Out of Sequence WLANs

Table 4-1 shows the BSSID to which all 16 WLANs available in normal mode

are always assigned.
