4-16
Wireless Local Area Networks (WLANs)
Configuration Options: Normal Versus Advanced Mode

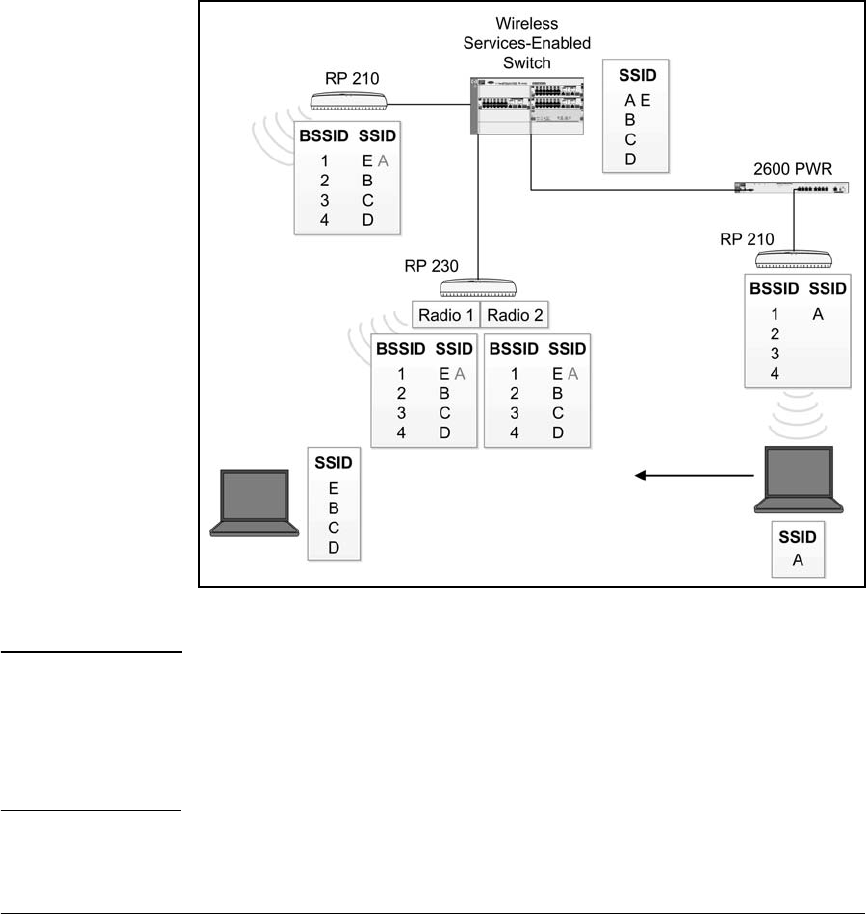

Figure 4-9 displays an environment such as this. This figure also shows the
option of enabling SSID A (WLAN 1) on the default configuration, but having
SSID E (WLAN 5) be the primary WLAN. (Stations in WLAN 1 can then roam
into areas in which WLAN 1 operates in closed system.) In this example,
WLAN 1 is less a restricted WLAN than a WLAN that is primarily used by
employees in one area.
Figure 4-9. Configuring an Area-Specific WLAN
Note Depending on whether you enable WLANs or advanced mode configuration
first, the radio adoption configuration begins with either the normal WLAN
assignment or an empty WLAN assignment. Leaving the WLAN assignment in
the default configurations empty is not necessarily undesirable: it can increase
security. However, you should be aware that in this case newly adopted radios
will not support WLANs until you manually configure them to do so.
