Wireless Local Area Networks (WLANs)
Configuration Options: Normal Versus Advanced Mode
To manually assign WLANs, complete these steps:
1. Select Network Setup > Radio and click the radio that you want to
configure.
2. Click the WLAN Assignment tab.
3. Click the Edit button. The Network Setup > Radio > Assign Wireless Lans to
Radios screen is displayed. (See Figure 4-12.)

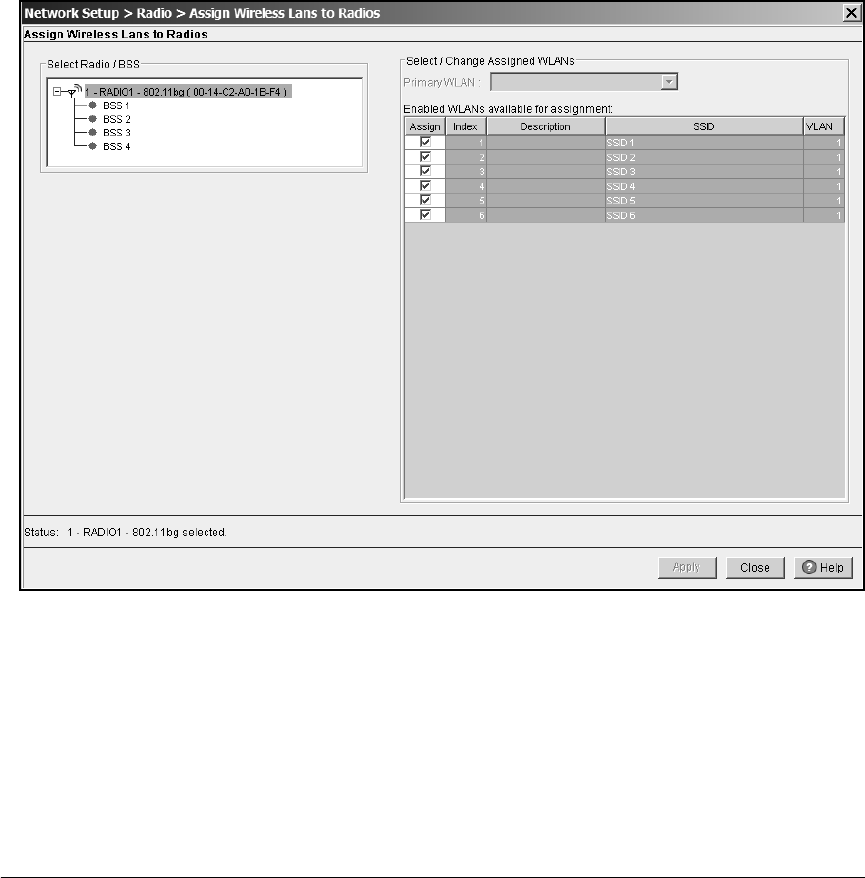

Figure 4-12. Assigning WLANs to a Specific RP Radio
4. You can assign SSIDs either to the radio as a whole or to a specific BSSID.
For example, you could assign SSIDs to the radio if:
• you are assigning four or fewer WLANs to the radio
• you are assigning more than four WLANs, but you want the radio to
advertise the four with the lowest index numbers
Complete step 5 to assign SSIDs to the radio as a whole. Complete step 6
to assign SSIDs to a specific BSSID.
