4-24

Wireless Local Area Networks (WLANs)

Configuration Options: Normal Versus Advanced Mode

If necessary, reconfigure the WLAN assignments as described in “Enabling

WLANs Using Advanced Mode Configuration” on page 4-13. You must also

remove all WLANs with indexes 17 and higher from the BSSIDs.

Note WLANs 17 through 32 are not available in normal mode. If you want the

Wireless Edge Services xl Module to continue supporting one of these WLANs,

then you must configure the corresponding SSID and settings on a WLAN with

an index number from 1 through 16.

You must check the WLAN assignment for all of the following configurations:

■ the radio adoption default configuration for 802.11a radios

■ the radio adoption default configuration for 802.11bg radios

■ the configuration for every RP radio adopted by your module

To disable advanced mode configuration, complete these steps:

1. Click Network Setup > WLAN Setup.

2. Click the Global Settings button. The Global WLAN Settings screen is dis-

played.

3. Uncheck the Advanced Configuration box, and then click the OK button. The

screen shown in Figure 4-16 is displayed.

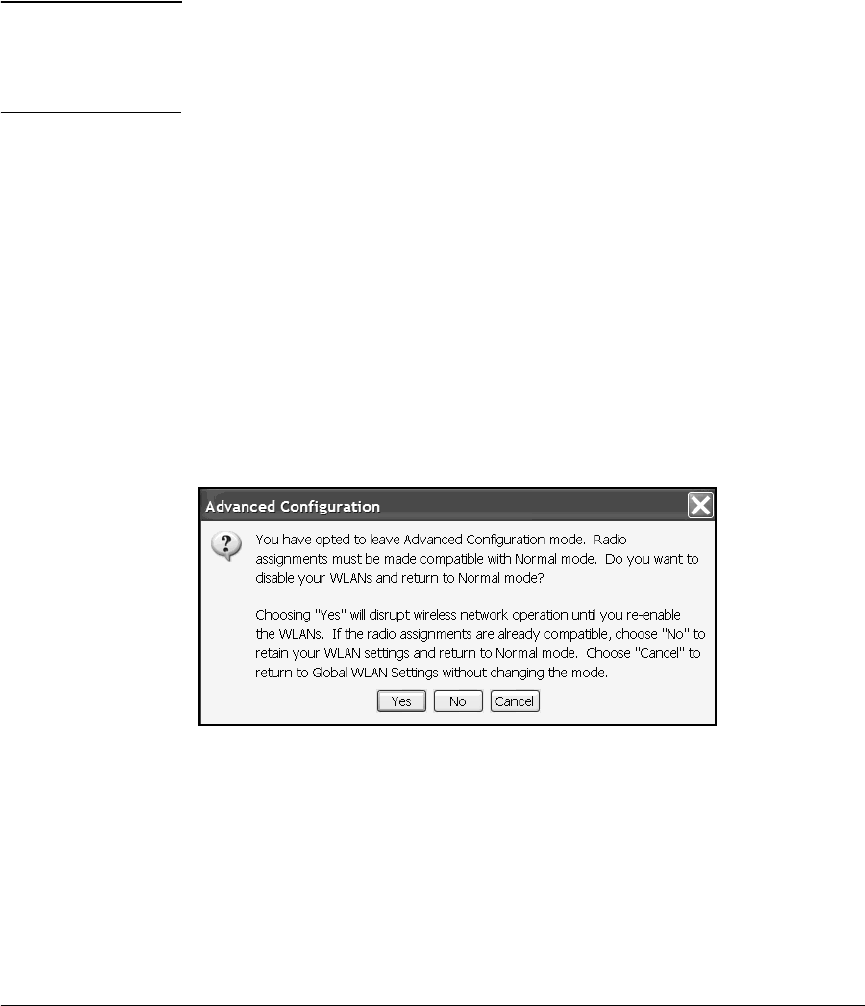

Figure 4-16. Disabling Advanced Configuration

4. Click the No button if you have verified that the WLAN assignment is

compatible with normal mode. This option disables advanced mode, but

leaves currently enabled WLANs active.
