4-29

Wireless Local Area Networks (WLANs)

Configuring a WLAN

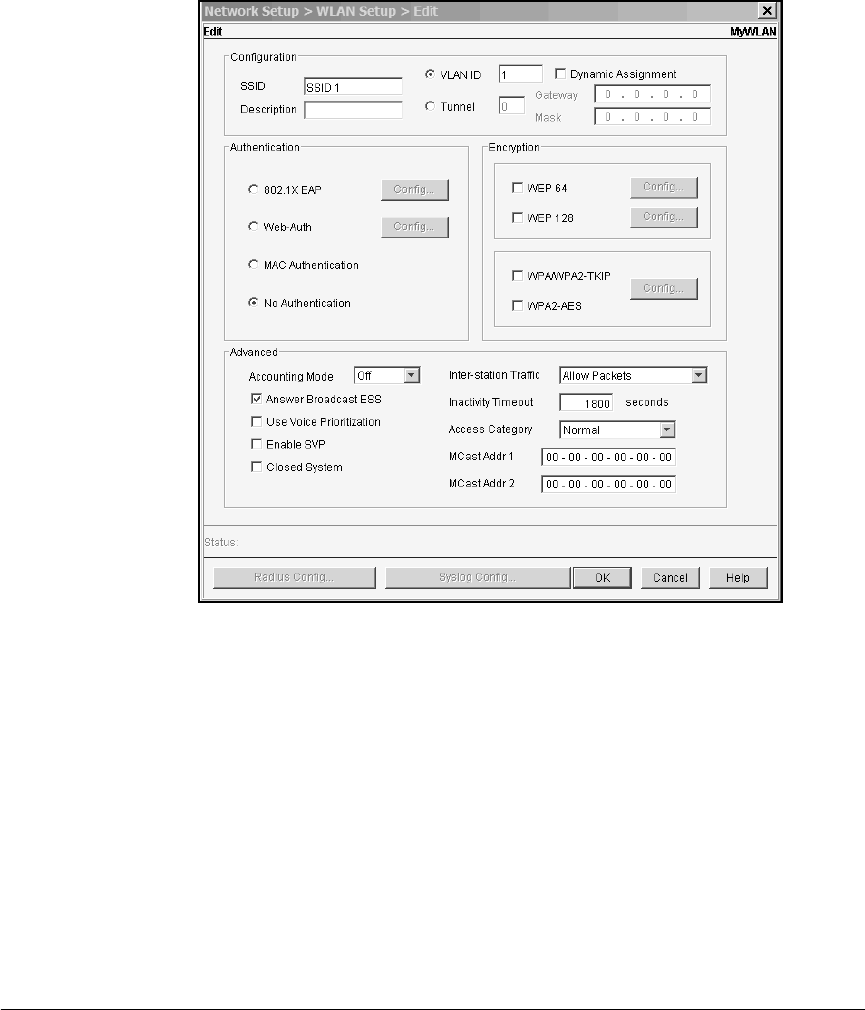

The screen illustrated in Figure 4-19 is displayed: this is the Edit screen for the

selected WLAN. On this screen, you configure settings for your WLAN.

Figure 4-19. Editing a WLAN

In the Configuration section, you create the WLAN’s basic settings.

Configure security standards in the Authentication and Encryption sections. If

you choose an authentication option that requires a RADIUS server, the

RADIUS Config... button is enabled, and you can configure RADIUS settings.

Optionally, you can configure advanced options in the Advanced section.

The following sections explain in more detail how to configure these settings.

However, the advanced options that deal specifically with quality of service

(QoS) are described in “Traffic Management (QoS)” on page 4-90.
