4-31

Wireless Local Area Networks (WLANs)

Configuring a WLAN

To configure these options, follow these steps:

1. Access the Edit screen for the WLAN, as described in “Configuring a

WLAN” on page 4-26.

2. Under Configuration, in the SSID field, enter the SSID that you have selected

for this WLAN.

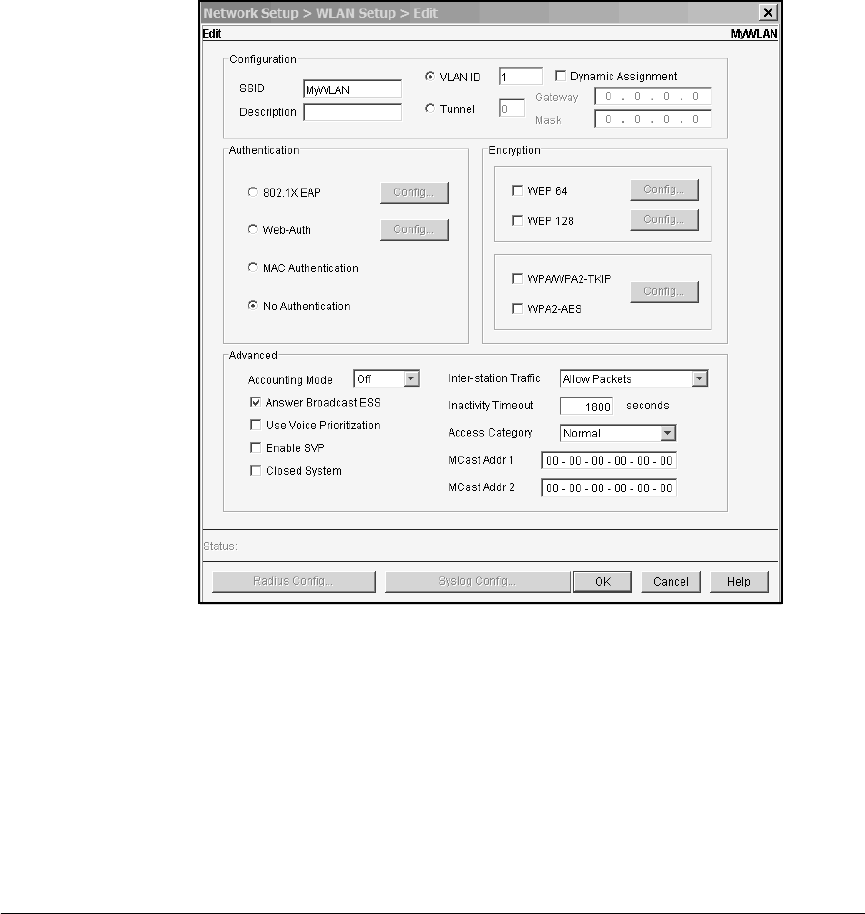

Figure 4-20. Configuring the SSID

When you enable the WLAN, the Wireless Edge Services xl Module auto-

matically configures this SSID on all adopted RP radios (as long as you

are using normal mode). For more information on how the module does

this, see “Normal Mode Configuration” on page 4-4.

3. In the Description field, enter information about this WLAN to remind you

and other administrators of its purpose.
