4-33

Wireless Local Area Networks (WLANs)

Configuring a WLAN

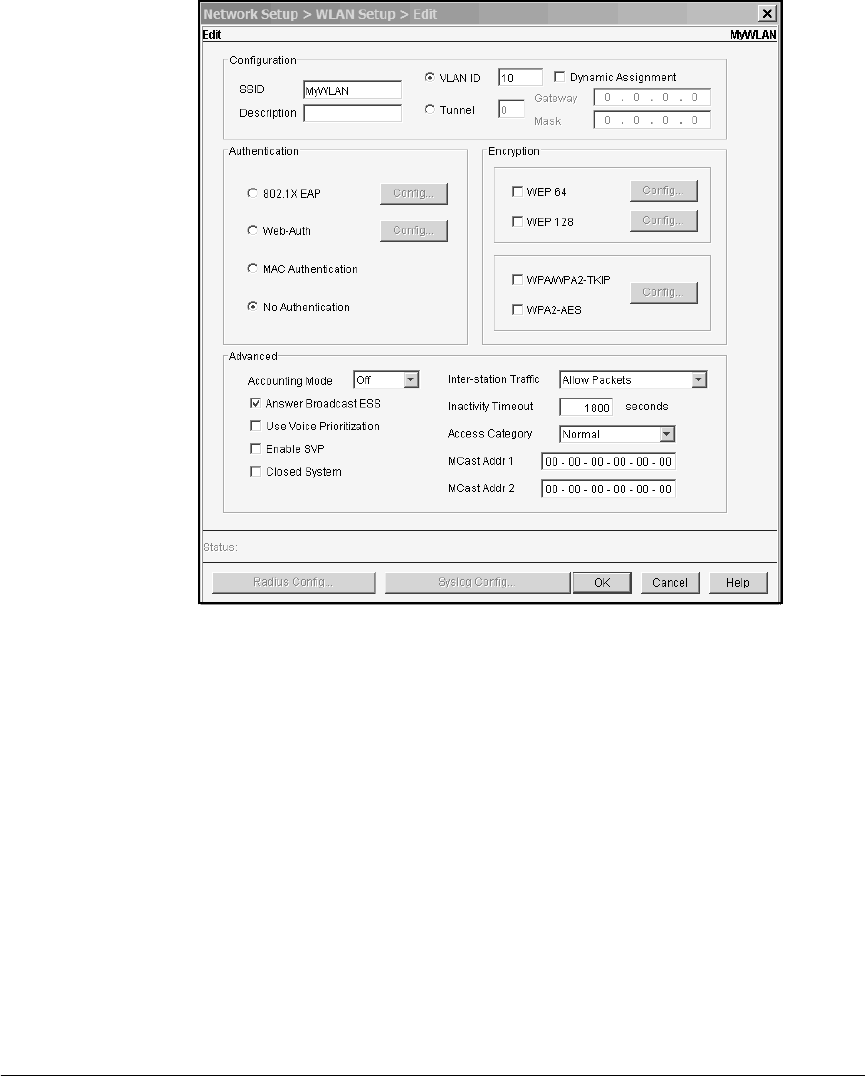

Figure 4-21. Setting the VLAN ID

5. Check the Dynamic Assignment box to enable the Wireless Edge Services

xl Module to apply dynamic (or user-based) VLAN assignments received

from a RADIUS server.

Do not use dynamic VLAN assignment when the WLAN requires Layer 3

mobility.

If the WLAN uses Web-Auth set the DHCP lease for the WLAN’s static

VLAN very low. This allows the station to request a new IP address in the

dynamic VLAN after the user authenticates.

6. Continue configuring the WLAN. See “Configuring Security Options” on

page 4-34. (Or click OK to apply the settings and close the Edit screen.)
