4-40

Wireless Local Area Networks (WLANs)

Configuring a WLAN

Web-Auth. Web-Auth allows wireless stations that do not support 802.1X to

authenticate to a RADIUS server. Web-Auth is an easy-to-use option that is

often selected for wireless networks that provide Internet or limited network

access to a broad range of users. The instructions below simply guide you

through the most basic Web-Auth settings. You should refer to Chapter 5: Web

Authentication for Mobile Users to learn how to configure more advanced

options and customize Web pages.

Note You can configure MAC authentication for more security in a WLAN using

Web-Auth. (See Chapter 13: Wireless Network Management.)

To enable Web-Auth on a WLAN, complete these steps:

1. Select Network Setup > WLAN Setup and click the Configuration tab.

2. Select the WLAN that you want to use Web-Auth, and then click the Edit

button. The Edit screen is displayed.

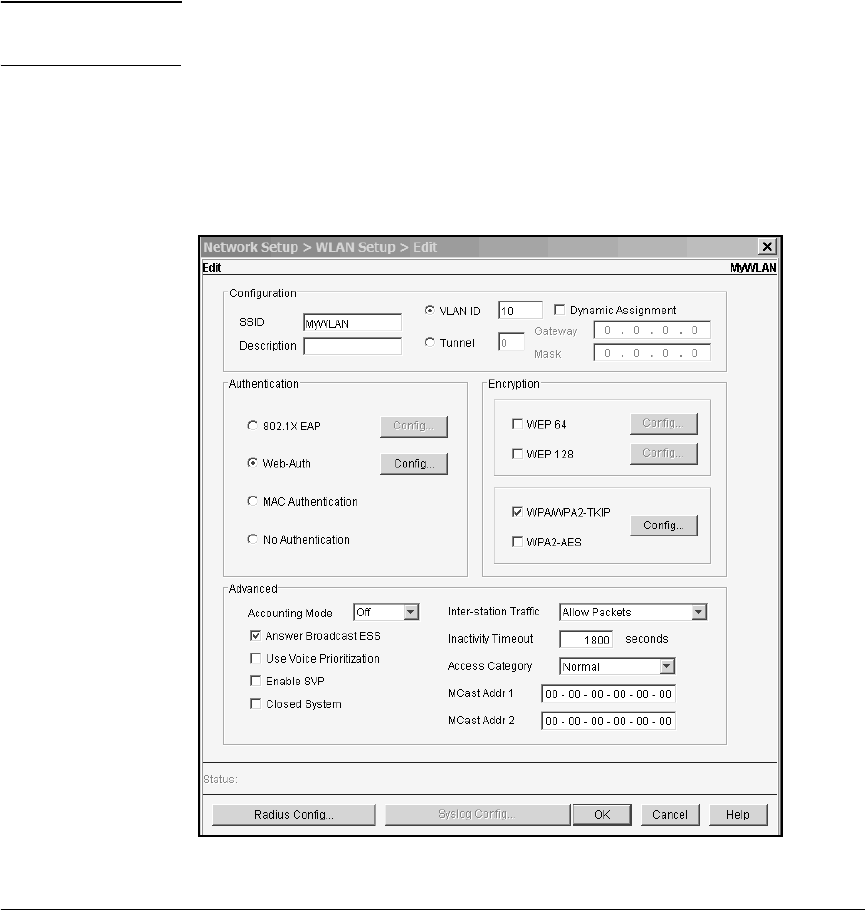

Figure 4-25. Enabling Web-Auth
