4-41

Wireless Local Area Networks (WLANs)

Configuring a WLAN

3. Under Authentication, select Web-Auth.

Note On the configuration screens that appear in this procedure, you can quickly

get the WLAN running by completing these minimal steps. (Learn more about

the process in Chapter 5: Web Authentication for Mobile Users.)

4. Click the Config button next to Web-Auth. The Web-Auth screen is dis-

played.

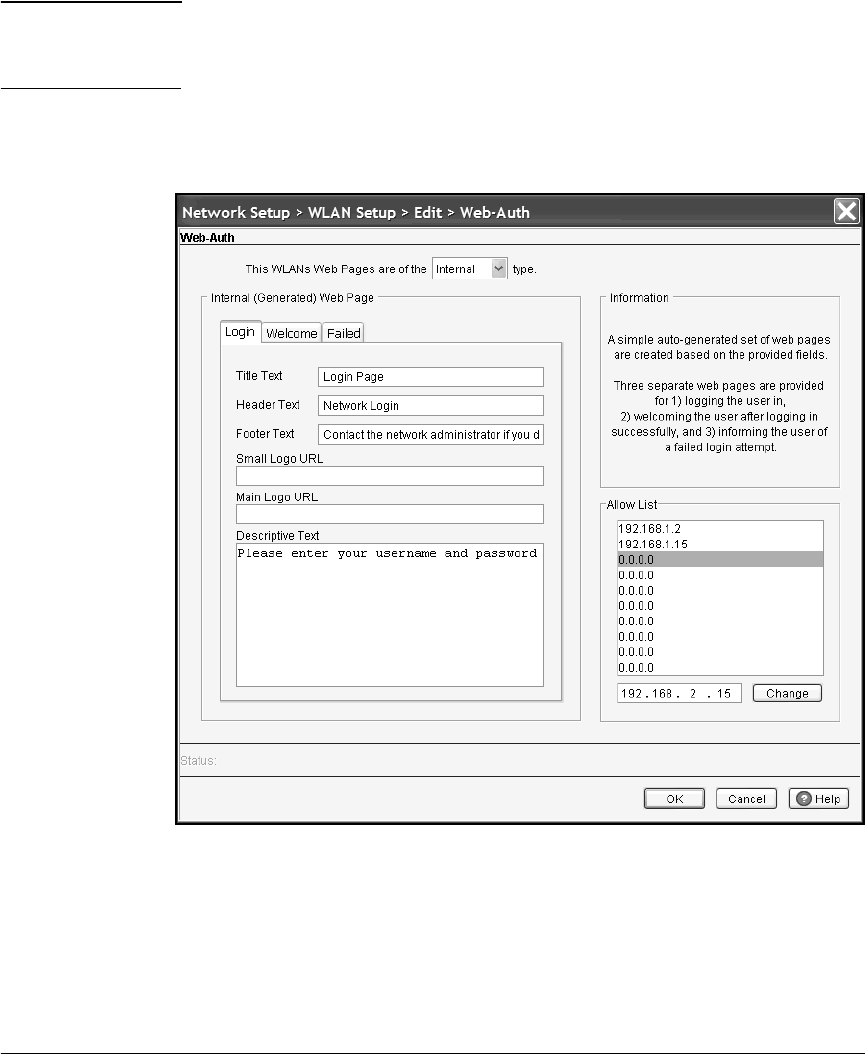

Figure 4-26. Configuring the Allow

5. On the Web-Auth screen, under Allow List, add the IP addresses that

unauthorized stations are allowed to access.
