4-42

Wireless Local Area Networks (WLANs)

Configuring a WLAN

The Wireless Edge Services xl Module automatically handles traffic such

as DHCP and Domain Name System (DNS) requests. In this basic config-

uration, you are using Web-Auth pages stored on the module, so you are

not required to add any IP addresses to the Allow list. For more advanced

options, see Chapter 5: Web Authentication for Mobile Users.

6. Leave other settings at their defaults and click the OK button.

7. Web-Auth requires a RADIUS server to act as the authentication server.

Click the Radius Config button at the bottom of the screen. The Radius

Configuration screen is displayed.

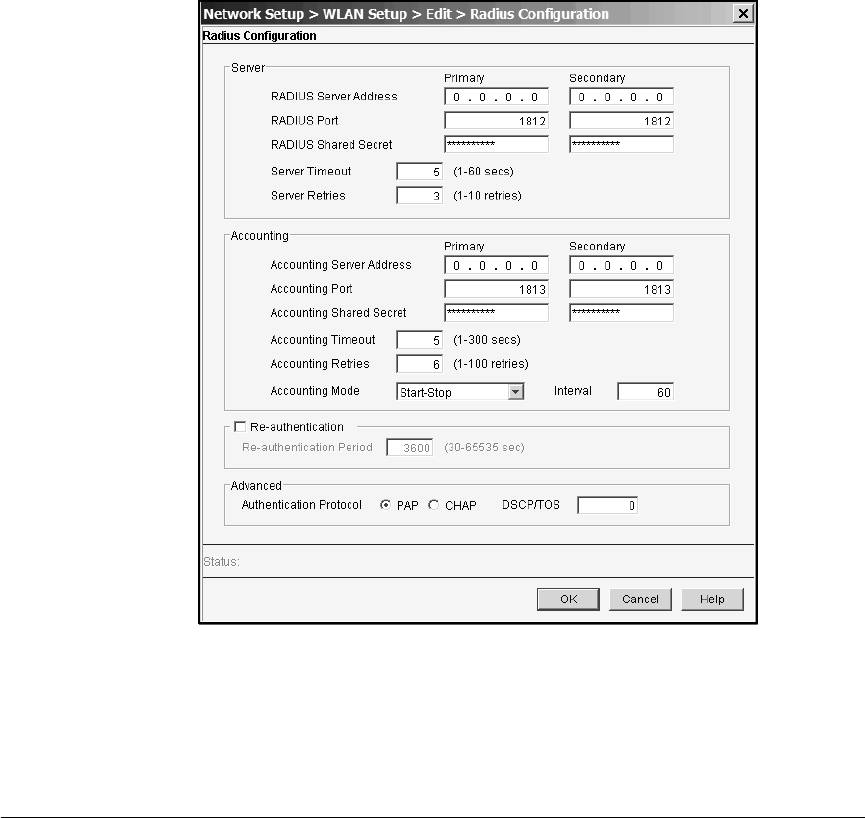

Figure 4-27. Radius Configuration Screen
