4-45

Wireless Local Area Networks (WLANs)

Configuring a WLAN

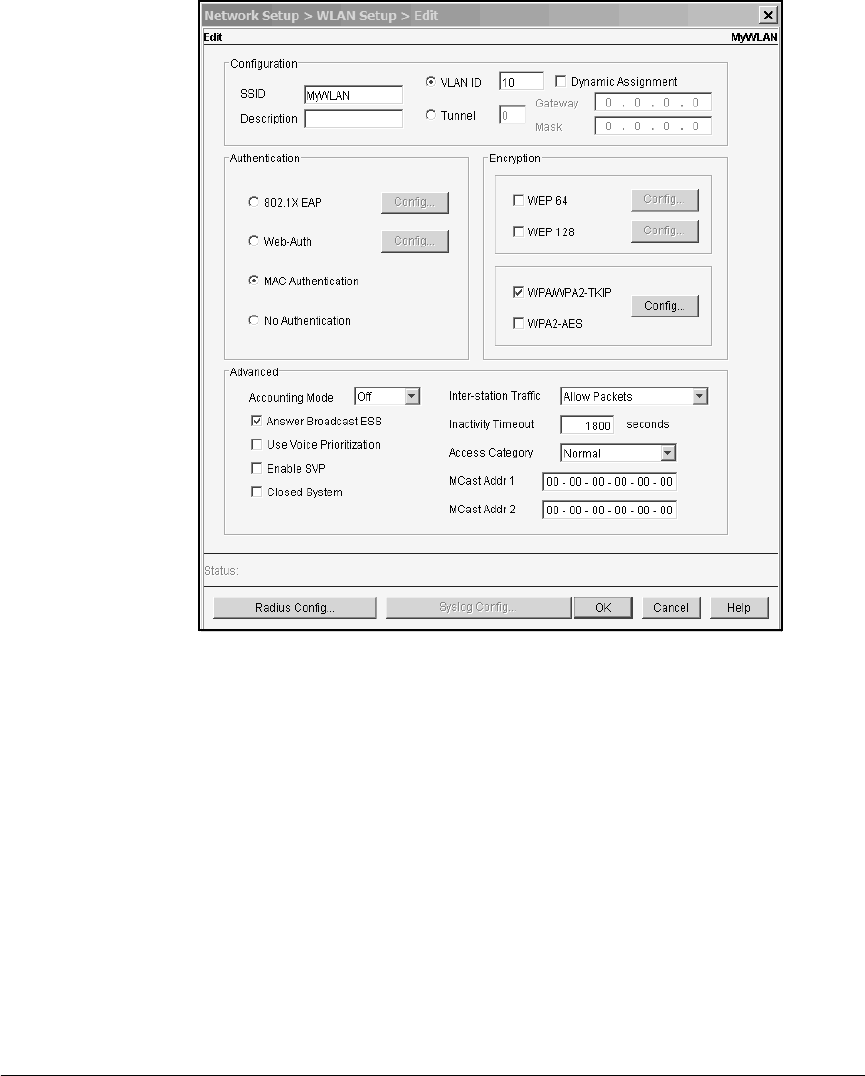

Figure 4-28. Enabling MAC Authentication

2. Under Authentication, select MAC Authentication.

3. This authentication option requires a RADIUS server to act as the authen-

tication server. Click the Radius Config button at the bottom of the screen.

The Radius Configuration screen is displayed.
