4-46

Wireless Local Area Networks (WLANs)

Configuring a WLAN

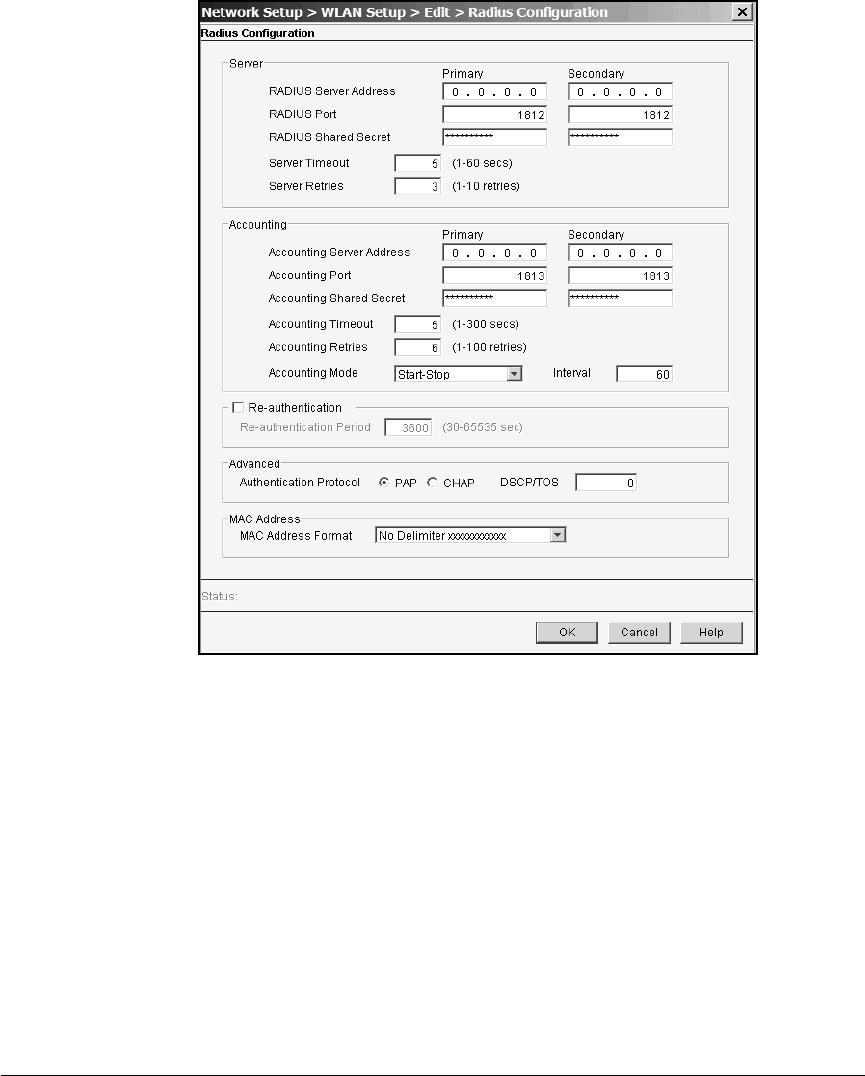

Figure 4-29. Radius Configuration Screen for MAC Authentication

4. In the Radius Configuration screen, under Server, specify settings for your

network’s RADIUS servers.

Enter settings for your primary server in the fields in the Primary column:

a. In the RADIUS Server Address field, specify the IP address of your

network’s primary RADIUS server.

To use the module’s internal server, enter 127.0.0.1.

b. Leave the RADIUS Port field at the default value unless you know that

your server uses a different port.

The default value is 1812.
